Brother H2L22T030-BMK4AX 3-Phase Induction Motor 0.25HP Gear Reducer Ratio 30:1

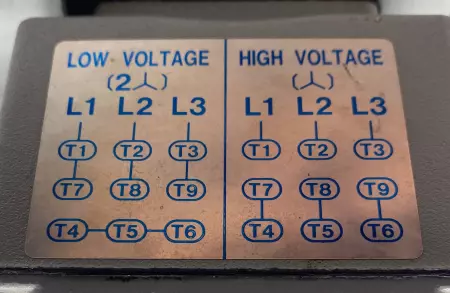

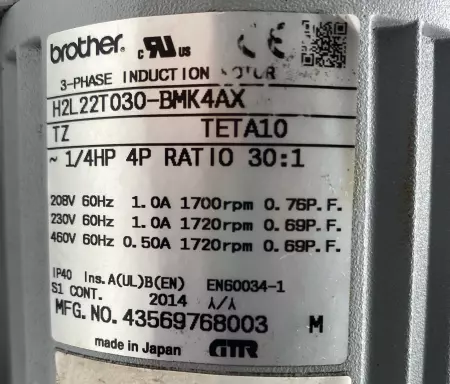

The Brother H2L22T030-BMK4AX is a compact 3-phase induction motor integrated with a gear reducer. It delivers 0.25 horsepower with a 30:1 gear reduction ratio, ideal for low-speed, high-torque applications in automation and general industrial machinery. Product Type: 3-Phase Induction Motor with Gear Reducer Manufacturer: Brother Model Number: H2L22T030-BMK4AX Motor Type: Induction Motor Power Rating: 0.25 HP (0.18 kW) Voltage: 208–230/460V (dual voltage, 60 Hz) Current: Approx. 1.0 A @ 230V / 0.50 A @ 460V Frequency: 60 Hz Speed (Motor): 1720 RPM (synchronous speed) Gear Reducer Type: Inline helical gear reducer Reduction Ratio: 30:1 Output Speed: Approx. 56–60 RPM Mounting Style: Foot mount or face mount (BMK4AX configuration) Output Shaft: Solid shaft Insulation Class: Class B Service Factor: 1.0 (typical) Enclosure Type: Totally Enclosed Fan Cooled (TEFC) Lubrication: Permanent grease-lubricated gear reducer Application: Conveyors, packaging, material handling, automation systems Operating Temperature: -10°C to +40°C Housing Material: Die-cast aluminum or cast iron (depending on series) Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   20.00

Depth:   16.00

Length:   16.00

Width:   16.00

SKU:   260060 4.S9.16.1
