Reliance Electric P44G0362K-G2-0P Duty Master® AC Motor 125 HP, Frame 444TS

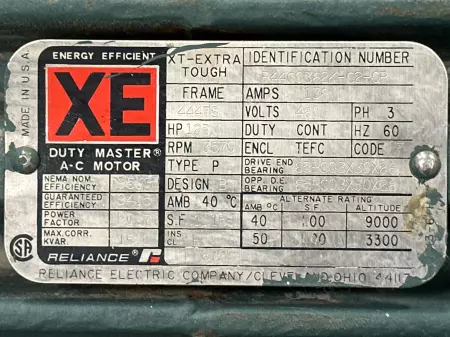

The Reliance Electric P44G0362K-G2-0P Duty Master® AC Motor is a high-efficiency, heavy-duty industrial motor built for continuous operation under tough conditions. It belongs to the XT (Extra Tough) series and is ideal for demanding applications such as compressors, pumps, conveyors, and fans. Model: P44G0362K-G2-0P Series: Duty Master® XT – Extra Tough Power Rating: 125 HP Voltage: 460 V Current: 138 A Frequency: 60 Hz Speed: 3570 RPM Phase: 3-phase Frame Size: 444TS Duty: Continuous (CONT) Enclosure: TEFC (Totally Enclosed Fan Cooled) Design Code: B NEMA Nominal Efficiency: 95.4% Guaranteed Efficiency: 94.5% Power Factor: 89.7% Max KVAR Correction: 15.0 Service Factor: 1.15 (standard), 1.00 (alternate rating) Ambient Temperature: 40°C (standard), 50°C (alternate) Altitude Rating: 9000 ft @ 40°C, 3300 ft @ 50°C Drive End Bearing: 65BC03X30X26 Opposite Drive End Bearing: 65BC03X30X26 Insulation Class: F Mounting: Foot mount (TS frame, with C-face for direct coupling) Application: Heavy industrial use, suitable for harsh and high-demand environments Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   500.00

Depth:   60.00

Length:   48.00

Width:   48.00

SKU:   260075 4.r1.6.1
