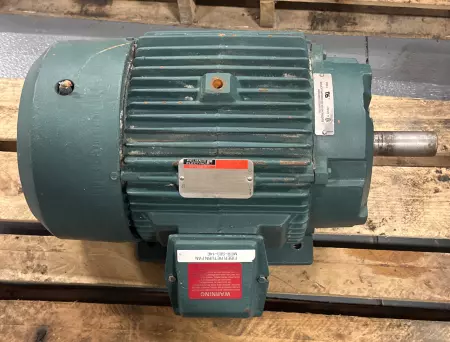

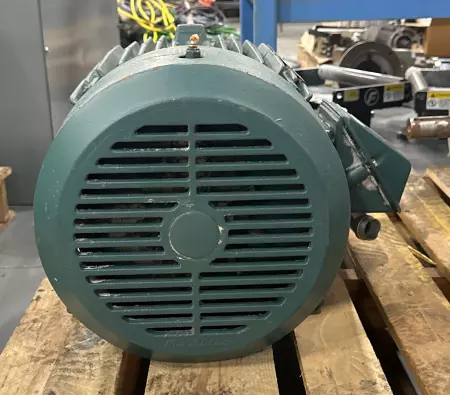

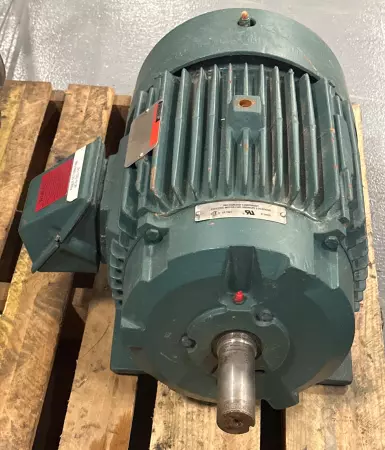

Reliance Electric P25C0398 Duty Master® AC Motor 20HP, Frame 256T

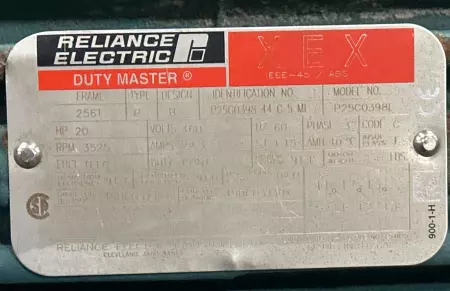

This Reliance Electric Duty Master® AC motor is a high-performance, totally enclosed fan-cooled (TEFC) motor designed for continuous-duty industrial applications. Model No.: P25C0398L Identification No.: P25C0398 44 C 5 M1 Motor Type: Duty Master® AC Motor Frame Size: 256T Horsepower: 20 HP RPM: 3525 RPM Voltage: 460 VAC Current: 23.5 Amps Frequency: 60 Hz Phase: 3-phase Design Code: B NEMA Code: C Enclosure: TEFC (Totally Enclosed Fan Cooled) Duty: Continuous (CONT) Service Factor: 1.15 Insulation Class: F Ambient Temperature Rating: 40°C Efficiency: Premium (typically ~91.0%, confirm on spec sheet) Mounting: Rigid base mount Bearings: 6209 (drive end), 6208 (opposite drive end) Certifications: CSA listed, ABS/IEEE-45 XEX-rated Application: Suitable for industrial pumps, compressors, fans, and other high-speed loads Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   151.00

Depth:   24.00

Length:   40.00

Width:   48.00

SKU:   260076 4.r6.7.1
