Allen-Bradley 1326AB-B430E-21 SER.C AC Servo Motor, 1.5kW/2HP 108mm Frame

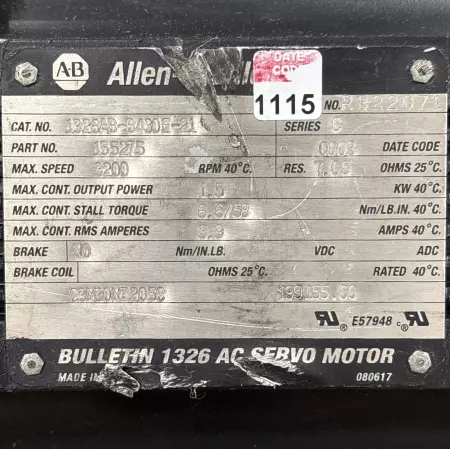

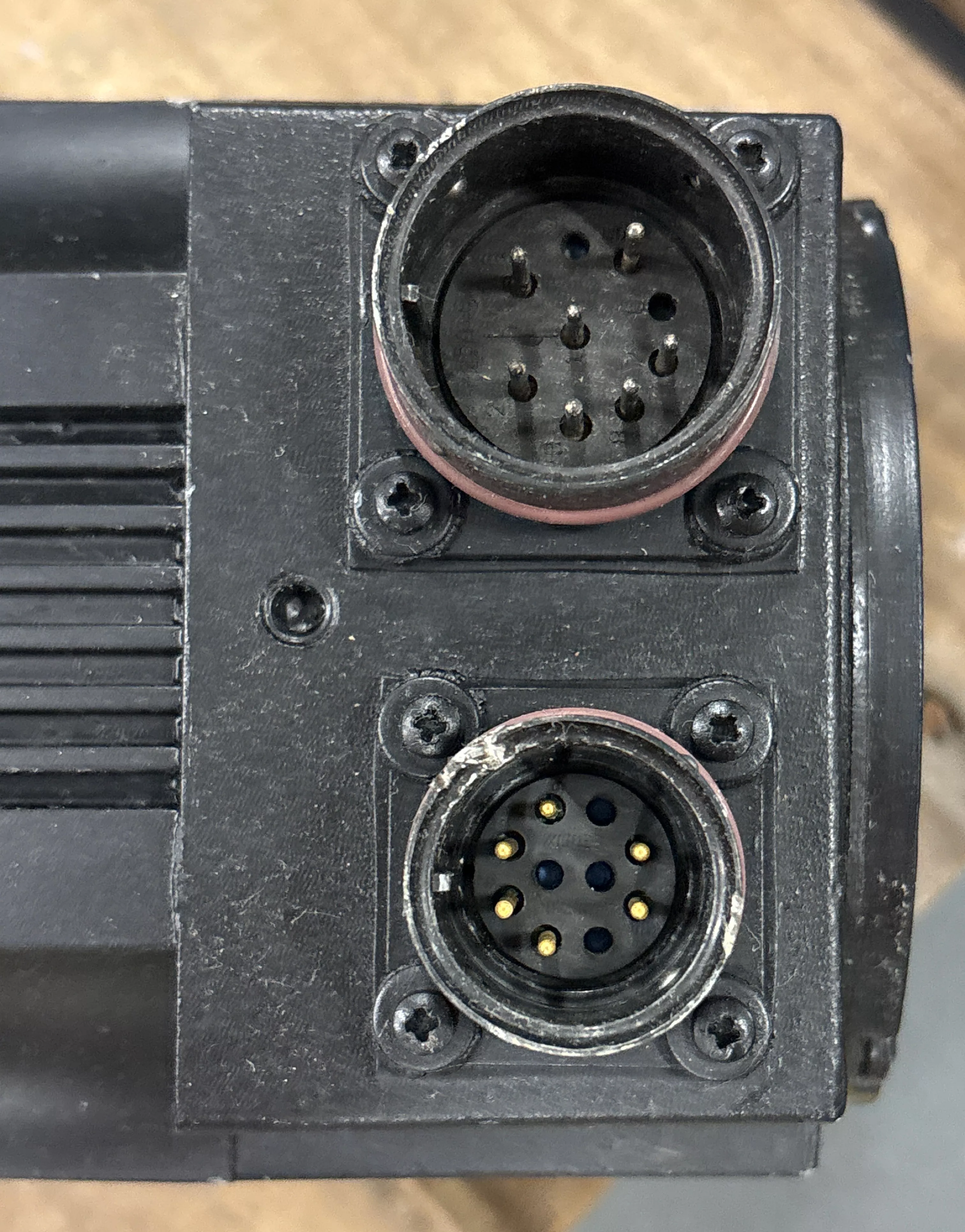

The Allen-Bradley 1326AB-B430E-21 is an industrial-grade AC servo motor from the Bulletin 1326AB series. It is designed for high-performance closed-loop motion applications requiring precise speed and torque control. Catalog Number: 1326AB-B430E-21 Part Number: 155275 Series: C Motor Type: AC Servo Motor Maximum Speed: 3200 RPM Rated Output Power: 1.5 kW (2 HP) Frame diameter: 108 mm Input: 460/380 VAC Maximum Continuous Stall Torque: 6.6 Nm (58 in-lb) Maximum Continuous RMS Current: 3.9 A Resistance: 7.05 Ohms @ 25°C Brake: No (non-brake model) Brake Coil: Not applicable Cooling: Natural convection (non-fan cooled) Duty: Continuous at 40°C Insulation Class: F Frame Size: B430 Mounting Type: Flange mount Connector Type: Circular MIL-style Application: Precision positioning, robotics, CNC, and machine tools Compliance: UL Recognized (E57948) Manufactured in: USA Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   30.00

Depth:   12.00

Length:   14.00

Width:   20.00

SKU:   260216 4.R4.8.2, 4.r3.7.1
