Reliance Electric 47GP21406201G Duty Master® AC Motor 10 HP, Frame 215T

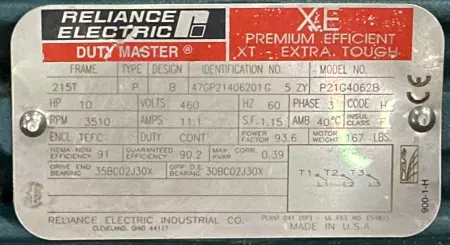

This is a premium efficient, extra tough (XT) TEFC AC induction motor from the Reliance Duty Master® XE line. It delivers high durability and efficiency, suitable for continuous-duty industrial applications. Model No: P21G4062B Identification No: 47GP21406201G Horsepower: 10 HP Frame: 215T Type: P Design: B Voltage: 460 V Current: 11.1 A Speed: 3510 RPM Frequency: 60 Hz Phase: 3-phase Service Factor: 1.15 Ambient Temperature: 40°C Insulation Class: F Enclosure: TEFC (Totally Enclosed Fan Cooled) Duty: Continuous (CONT) Power Factor: 93.6 NEMA Nominal Efficiency: 91% Guaranteed Efficiency: 90.2% Max Correction kVAR: 0.39 Drive End Bearing: 35BC02J30X Opposite Drive End Bearing: 30BC02J30X Motor Weight: 167 lbs Wiring Diagram: T1-T2-T3 to L1-L2-L3 Manufacturer: Reliance Electric Industrial Co., Cleveland, OH 44117 Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   151.00

Depth:   48.00

Length:   48.00

Width:   48.00

SKU:   260266 4.r6.7.1
