Allen-Bradley 1756-A17 ControlLogix 17-Slots Chassis with 1756-PA75 Power Supply
Key Features
- Model: Allen-Bradley 1756-A17 ControlLogix Chassis with 1756-PA75 Power Supply
- Chassis Type: 17-slot ControlLogix chassis, providing flexibility for large I/O configurations
- Power Supply: Includes the 1756-PA75 power supply, capable of providing 75W of power to the system
- Compatibility: Compatible with ControlLogix modular systems, supporting a wide range of Allen-Bradley I/O modules and communication modules
- Backplane: Offers a high-speed backplane for communication between modules
- Expansion: Allows expansion to accommodate additional I/O modules, enabling system scalability
- Mounting Type: Panel mountable for easy integration into control panels
- Built-in Features: Integrated diagnostics and status indicators for real-time system monitoring
Specifications

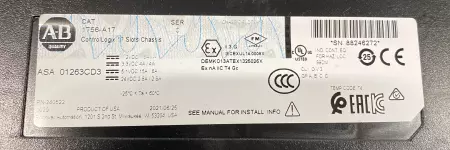

- Model Number: 1756-A17 (Chassis) / 1756-PA75 (Power Supply)

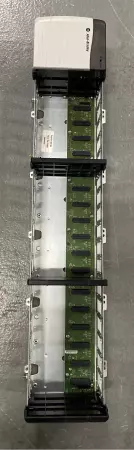

- Chassis Slots: 17 slots to accommodate ControlLogix modules

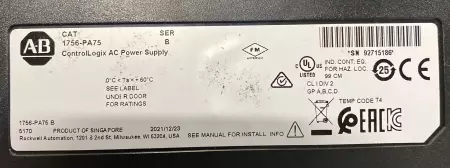

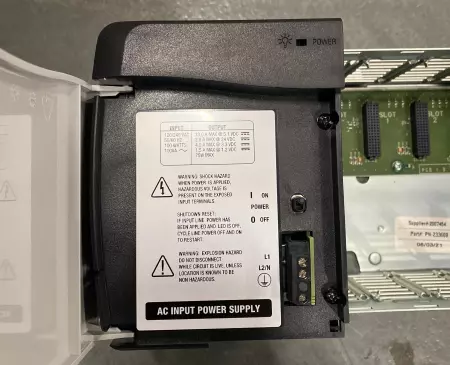

- Power Supply: 1756-PA75 Power Supply, provides 75W of power output for the chassis
- Input Voltage: 85-264 VAC (90-300 VDC) operational voltage for wide power input flexibility
- Operating Temperature: 0°C to 60°C (32°F to 140°F) for reliable performance in industrial environments
- Storage Temperature: -40°C to 85°C (-40°F to 185°F)
- Dimensions: Chassis: 9.85 x 5.2 x 8.07 inches (250 x 132 x 205 mm); Power Supply: 3.6 x 5.1 x 3.6 inches (92 x 130 x 92 mm)
- Weight: Chassis: Approx. 6.2 lbs (2.8 kg); Power Supply: Approx. 1.3 lbs (0.6 kg)
- Backplane Communication: High-speed backplane for fast and reliable communication between modules
- Mounting: Designed for easy panel mounting
- Certifications: CE, UL, CSA certifications for quality and safety
Applications
The Allen-Bradley 1756-A17 ControlLogix chassis with the 1756-PA75 power supply is ideal for large-scale industrial automation applications. It is suitable for use in manufacturing plants, processing facilities, and other automated systems requiring high flexibility, scalability, and reliable performance. With the ability to support a wide range of I/O modules and communication modules, this system is designed to meet the needs of complex control and monitoring applications.
Additional Information
The 1756-A17 ControlLogix chassis is part of Allen-Bradley's ControlLogix platform, providing modular, scalable control solutions for a variety of automation tasks. The 1756-PA75 power supply ensures that the system receives reliable power for optimal performance. With its flexible configuration and robust design, the system is ideal for integrating advanced control and monitoring systems in industries such as automotive, pharmaceuticals, food and beverage, and packaging.
