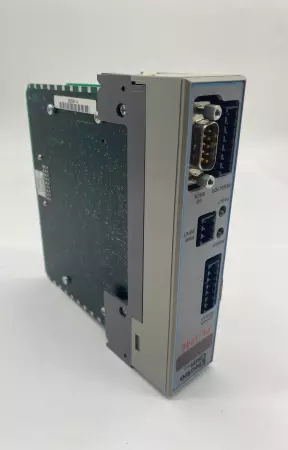

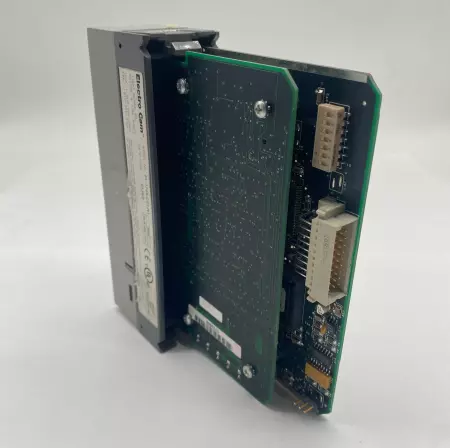

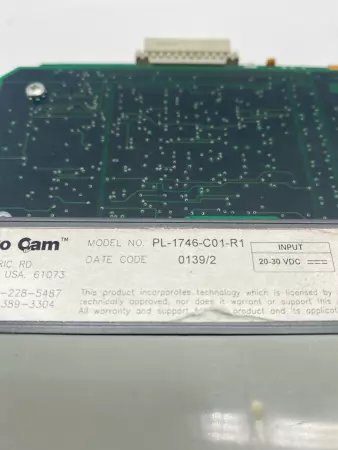

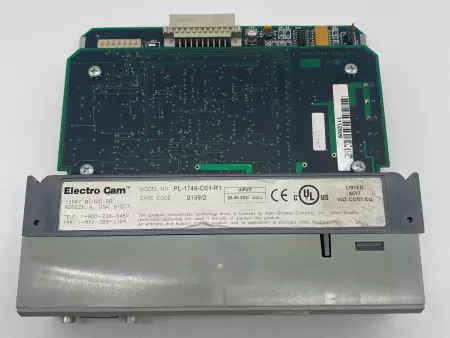

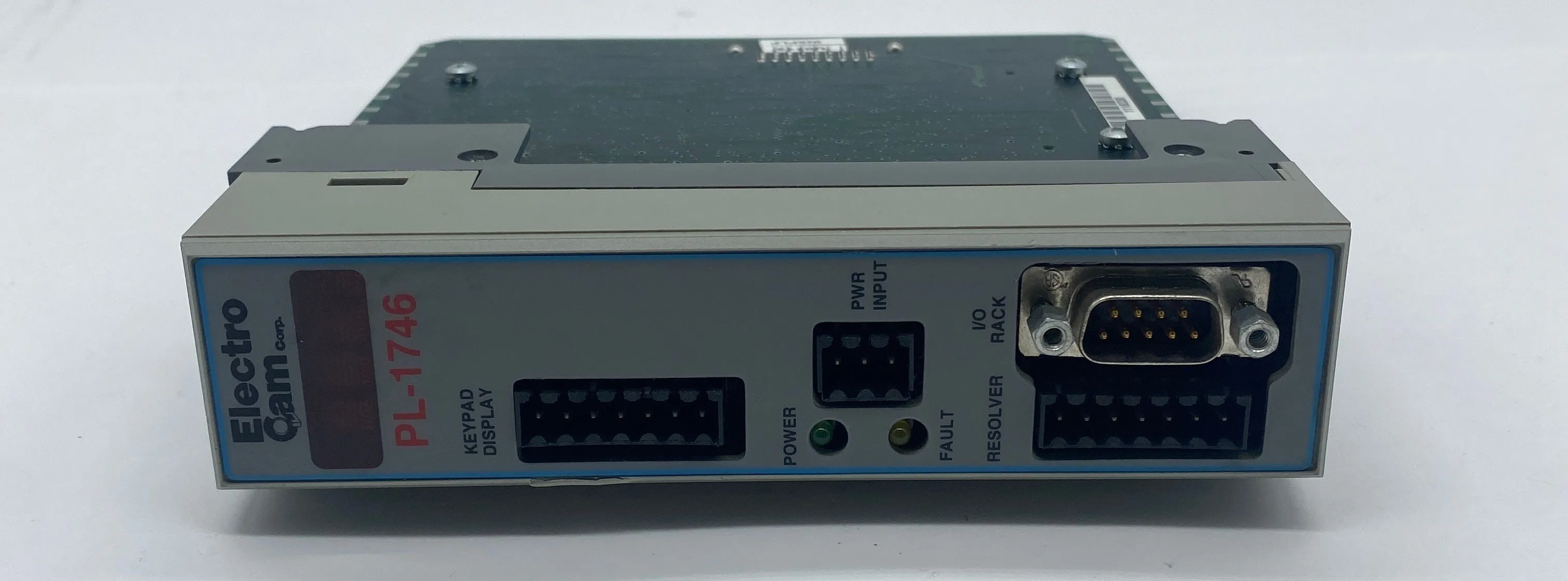

Electro Cam PL-1746-C01-R1 Absolute Position Module

The Electro Cam PL-1746-C01-R1 is an absolute position module designed for use with Allen-Bradley SLC 500 series PLCs. It integrates into the chassis as a plug-in module and provides real-time absolute shaft position data for precise timing and motion control applications, commonly used in packaging, labeling, and high-speed rotary machinery. General Features Model: PL-1746-C01-R1 Manufacturer: Electro Cam Corp. Function: Absolute position monitoring and programmable limit switch (PLS) Platform compatibility: Allen-Bradley SLC 500 PLCs 20-30 VDC Slot type: Standard SLC 1746 I/O slot Interface: Absolute encoder (typically SSI or parallel format input depending on encoder type) Resolution: Up to 13-bit or higher depending on encoder Encoder input: Single-turn or multi-turn absolute encoder (5 V DC, RS-422 or TTL-level) Update rate: Real-time—synchronized with machine shaft rotation Output: Multiple programmable limit switch outputs (typically solid-state) Output type: Sourcing/sinking digital outputs Status indicators: Front-panel LEDs for power, status, fault, and output state User interface: Configured via PLC ladder logic or external configuration tool Power requirement: Supplied via backplane from SLC 500 chassis Environmental rating: Designed for industrial environments (verify enclosure use) Typical Applications Rotary and indexing machines Labeling and print registration systems Punching, sealing, and form-fill-seal equipment Cam switch replacement with programmable flexibility

Condition: Used

Weight:   3.00

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   260423 4.S2.12.3D
