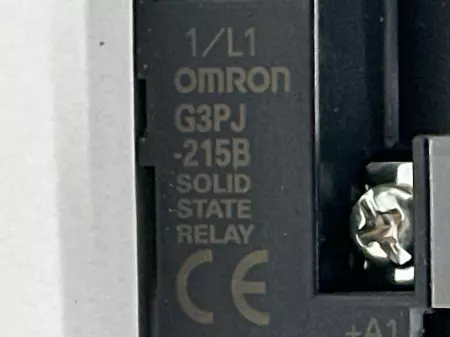

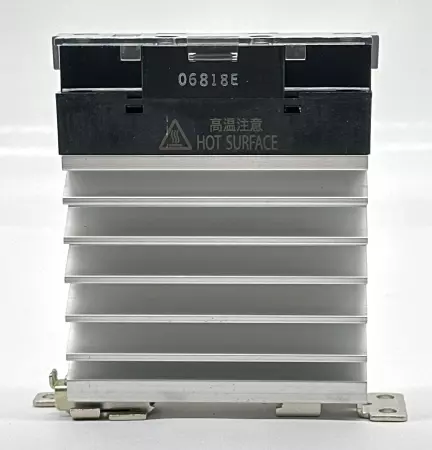

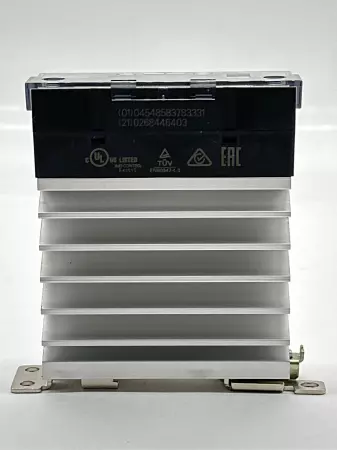

Omron G3PJ-215B Solid State Relay
Key Features
- Model: Omron G3PJ-215B Solid State Relay
- Type: Solid state relay designed for high-performance switching of electrical circuits
- Input Voltage: 4-32V DC for control input
- Output Voltage: 48-660V AC for load voltage
- Current Rating: 15A at 240V AC, making it suitable for various industrial applications
- Switching Speed: Fast response time with no mechanical wear, providing reliable performance over time
- High Isolation: High input-output isolation for safety and operational stability
- Protection Features: Built-in overcurrent, overvoltage, and thermal protection to ensure safe operation

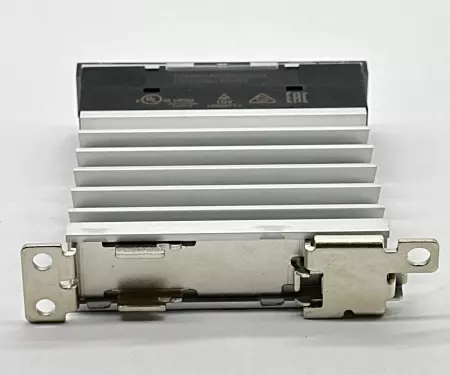

- Mounting: Designed for DIN rail or panel mounting for versatile installation options
- Compact Design: Space-saving design for easy integration into control panels or equipment
Specifications
- Model Number: G3PJ-215B
- Input Control Voltage: 4-32V DC
- Output Load Voltage: 48-660V AC
- Rated Output Current: 15A at 240V AC
- Trigger Voltage: 3-32V DC (for control signal activation)
- Relay Type: Zero-crossing, ensuring smooth operation during load switching
- Operating Temperature: Typically -30°C to +80°C (-22°F to +176°F), allowing it to function in various industrial environments
- Control Input Type: DC voltage for precise control
- Protection Features: Overcurrent, overvoltage, and thermal protection to safeguard the relay
- Mounting Type: DIN rail or panel mount, providing flexible installation options
- Weight: Lightweight and compact for easy handling and integration
- Standards: RoHS compliant for environmental safety and compliance
Applications
The Omron G3PJ-215B Solid State Relay is ideal for controlling electrical loads in various industrial automation systems. It is widely used in applications such as:
- Temperature Control Systems: For controlling heating elements in industrial ovens, furnaces, and temperature regulation equipment.
- Motor Control: Used in controlling motors and machines in manufacturing processes and automation systems.
- Lighting Systems: Ideal for switching large lighting loads in industrial and commercial settings.
- PLC and Process Control Systems: Used in conjunction with programmable logic controllers (PLCs) for precise and efficient control.
- Power Distribution: Suitable for switching large power loads in power distribution systems.
Additional Information
Omron's G3PJ-215B Solid State Relay is designed to provide reliable, fast switching with no mechanical parts, ensuring a long lifespan and reducing the need for maintenance. Its rugged design and protection features make it ideal for use in industrial environments where efficiency, safety, and longevity are critical. The solid-state relay’s fast switching capabilities and versatility make it an essential component in controlling high-power loads in automation systems and process control applications.
