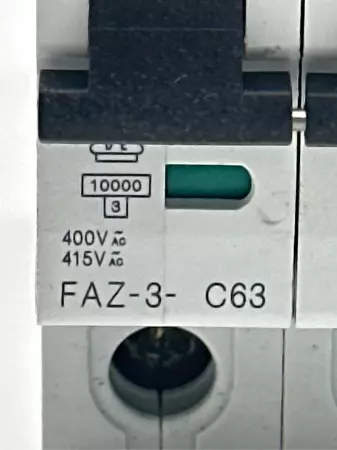

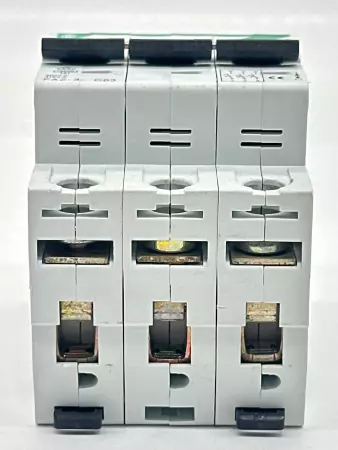

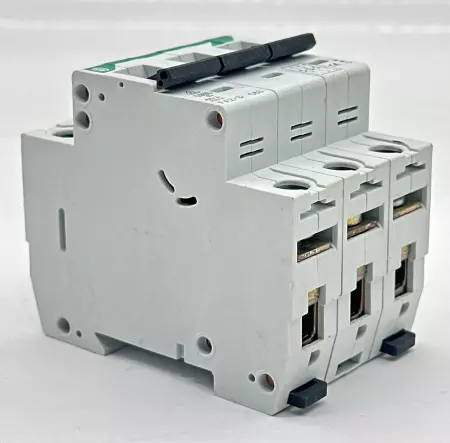

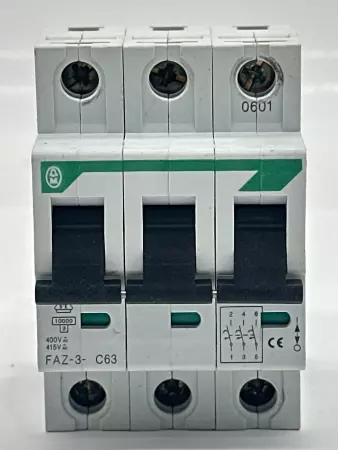

Moeller FAZ-3-C63 3-Pole Circuit Breaker

The Moeller FAZ-3-C63 is a three-pole miniature circuit breaker (MCB) designed for industrial applications requiring reliable overcurrent protection. This device is rated for a current of 63 amperes and is characterized by a C-curve trip profile, suitable for circuits with moderate inrush currents. Key Specifications: Manufacturer: Moeller (now part of Eaton) Model Number: FAZ-3-C63 Number of Poles: 3 Rated Current: 63 A Tripping Characteristic: C-Curve (trips between 5 to 10 times the rated current) Rated Voltage: 400 V AC Breaking Capacity: 15 kA according to IEC/EN 60947-2 Mounting: DIN rail Standards Compliance: IEC/EN 60947-2

Condition: Used

Weight:   4.00

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   260515 4.S5.8.1
