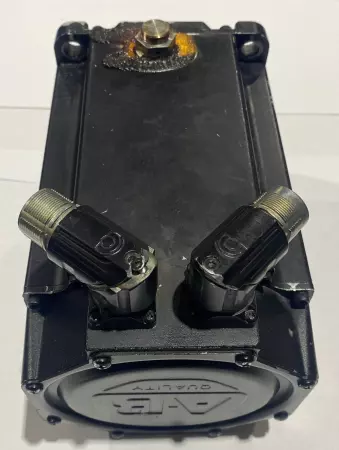

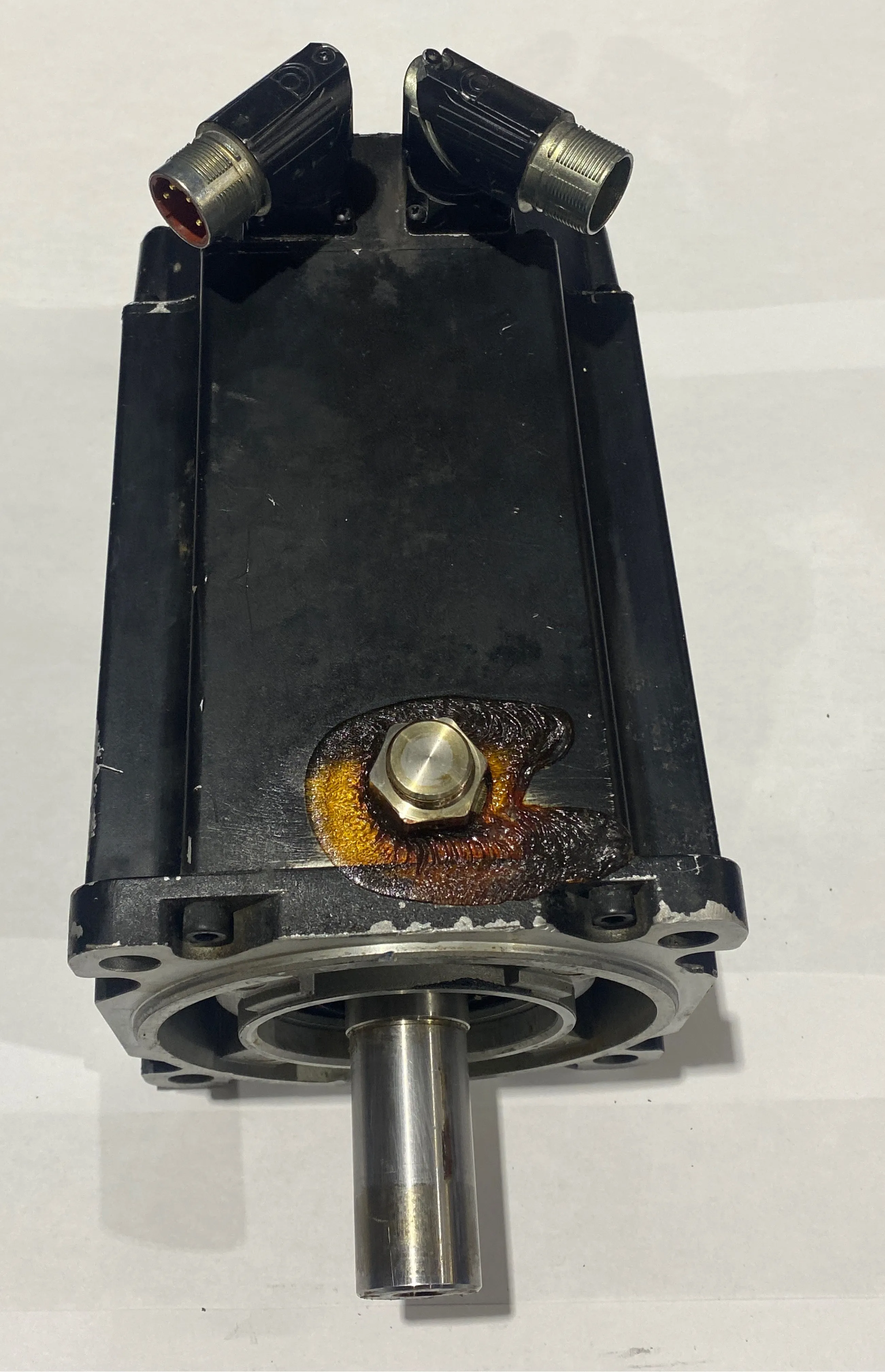

Allen-Bradley MPL-B540K-SJ72AA AC Servo Motor, 7.25HP

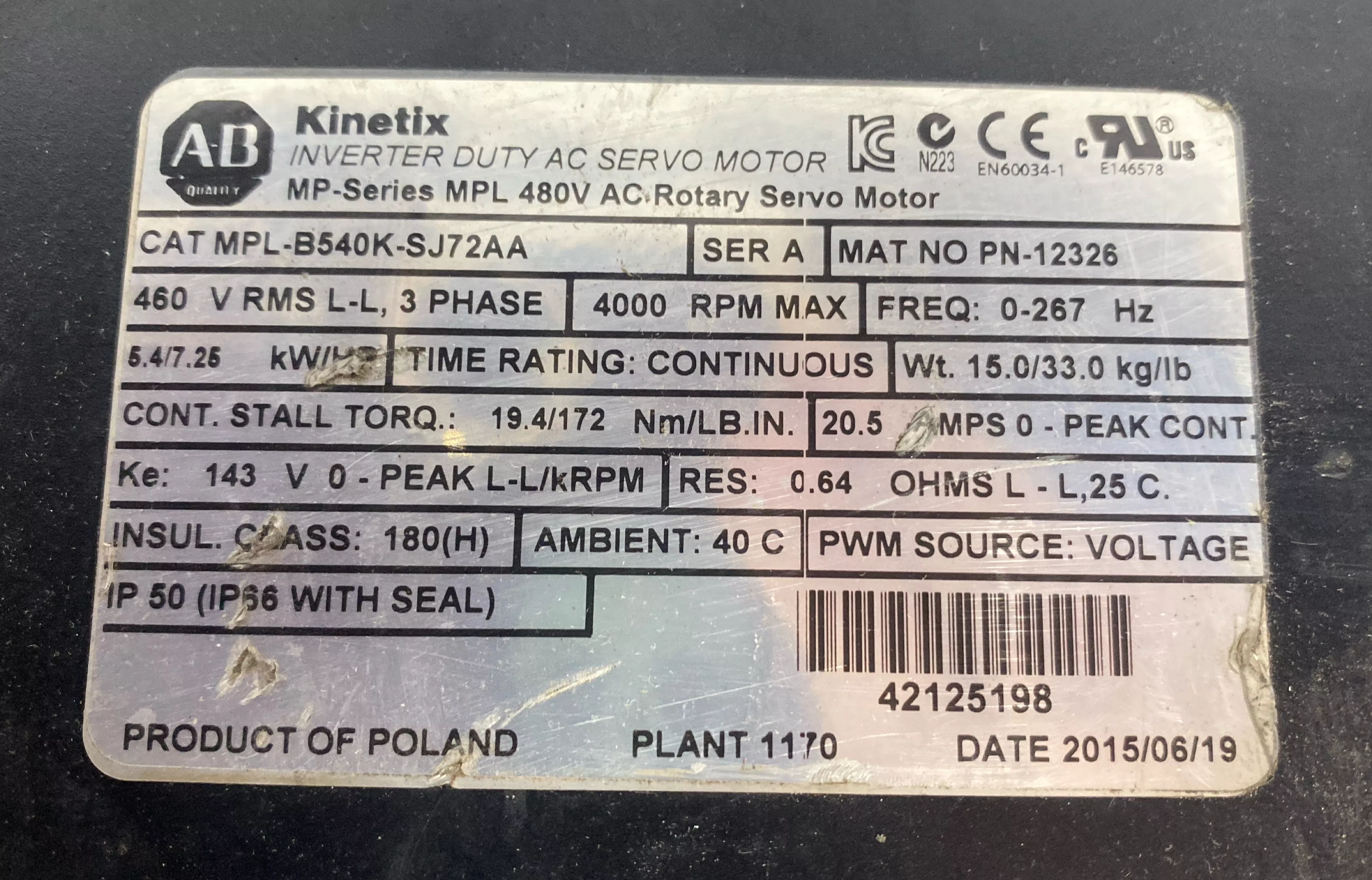

The Allen-Bradley MPL-B540K-SJ72AA is a MP-Series Low-Inertia Brushless AC Servo Motor designed for high-performance motion control applications. This motor offers a combination of compact size and high torque output, making it suitable for a variety of industrial automation tasks. Key Specifications: Voltage Rating: 460V AC Frame Size: 165 mm (6.50 inches) Stack Length: 101.6 mm (4.0 inches) Rated Speed: 4000 RPM Continuous Stall Torque: 19.4 Nm (172 lb-in) Peak Torque: 48.6 Nm (430 lb-in) Rotor Inertia: 0.00147 kg-m² (0.013 lb-in²) Power Output: Approximately 5.4 kW (7.25 HP) Features: Feedback Device: Single-turn high-resolution encoder for precise positioning. Shaft Design: Keyed shaft extension for secure mechanical coupling. Connector Type: SpeedTEC DIN connector, right-angle, 180° rotatable (quick connect) for flexible installation. Brake Option: No brake. Mounting: IEC metric with free mounting holes (Type FF) for compatibility with international standards.

Condition: Used

Weight:   40.00

Depth:   10.00

Length:   12.00

Width:   16.00

SKU:   260547 4.r4.6.1
