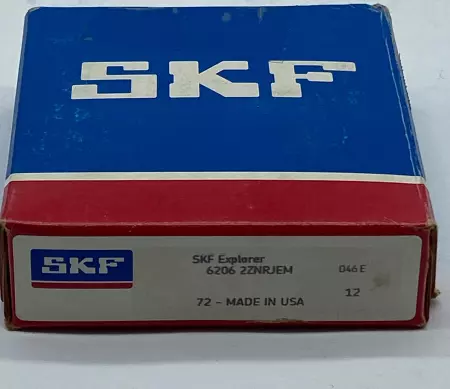

SKF 6206 2ZNRJEM Deep Groove Ball Bearing, Bore 30mm Width 16mm

The SKF 6206-2ZNRJEM is a deep groove ball bearing with the following specifications: Breakdown of the Bearing Code: 6206: This refers to the bearing series and size. 6: Deep groove ball bearing series. 206: Bearing with a 30mm bore. 2Z: This indicates that the bearing has metal shields (one on each side) to protect against contaminants and retain grease inside. NR: Refers to the snap ring groove and snap ring, which helps in axial positioning in housings. JEM: J: Indicates a pressed steel cage. EM: Signifies that the bearing meets C3 clearance and has specific tolerances for electric motor applications. Technical Specifications: Bore Diameter: 30 mm Outer Diameter: 62 mm Width: 16 mm Shield Type: Metal Shields (2Z) on both sides. Cage Material: Pressed Steel. Snap Ring: Included (NR). Clearance: C3 (for higher running temperatures and speeds). Load Rating: Suitable for both radial and axial loads. This bearing is commonly used in electric motors, pumps,

Condition: New

Weight:   0.90

Depth:   6.00

Length:   6.00

Width:   6.00

SKU:   260593 4.S4.17.1B
