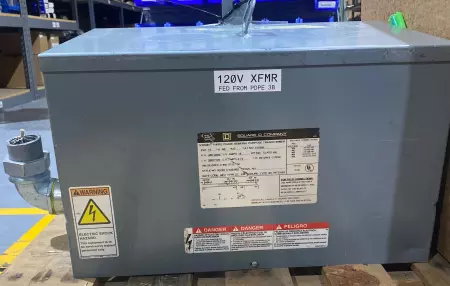

Square D 15T68F General Purpose Transformer, 3-Phase, 15kVA

The Square D 15T68F is a 15 kVA, three-phase, dry-type encapsulated transformer designed for general-purpose applications. It features a primary voltage of 480V and a secondary voltage of 208Y/120V, making it suitable for stepping down voltage in various commercial and industrial settings. Key Specifications: Power Rating: 15 kVA Phase: Three-phase Primary Voltage: 480V Secondary Voltage: 208Y/120V Frequency: 60 Hz Enclosure Type: NEMA 3R, suitable for indoor and outdoor applications Temperature Rise: 115°C Mounting: Wall mount Construction: Epoxy encapsulated for protection against environmental factors Dimensions: Approximately 19.1 inches (W) x 12.25 inches (D) x 14.75 inches (H) Weight: Approximately 300 lbs This transformer is designed to provide reliable performance in distributing electrical power, with an epoxy-encapsulated construction that enhances durability and protection against environmental factors. The NEMA 3R enclosure allows for both indoor and outdoor installations, offering flexibility in various settings. Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   151.00

Depth:   18.00

Length:   18.00

Width:   26.00

SKU:   260596 4.r5.3.1
