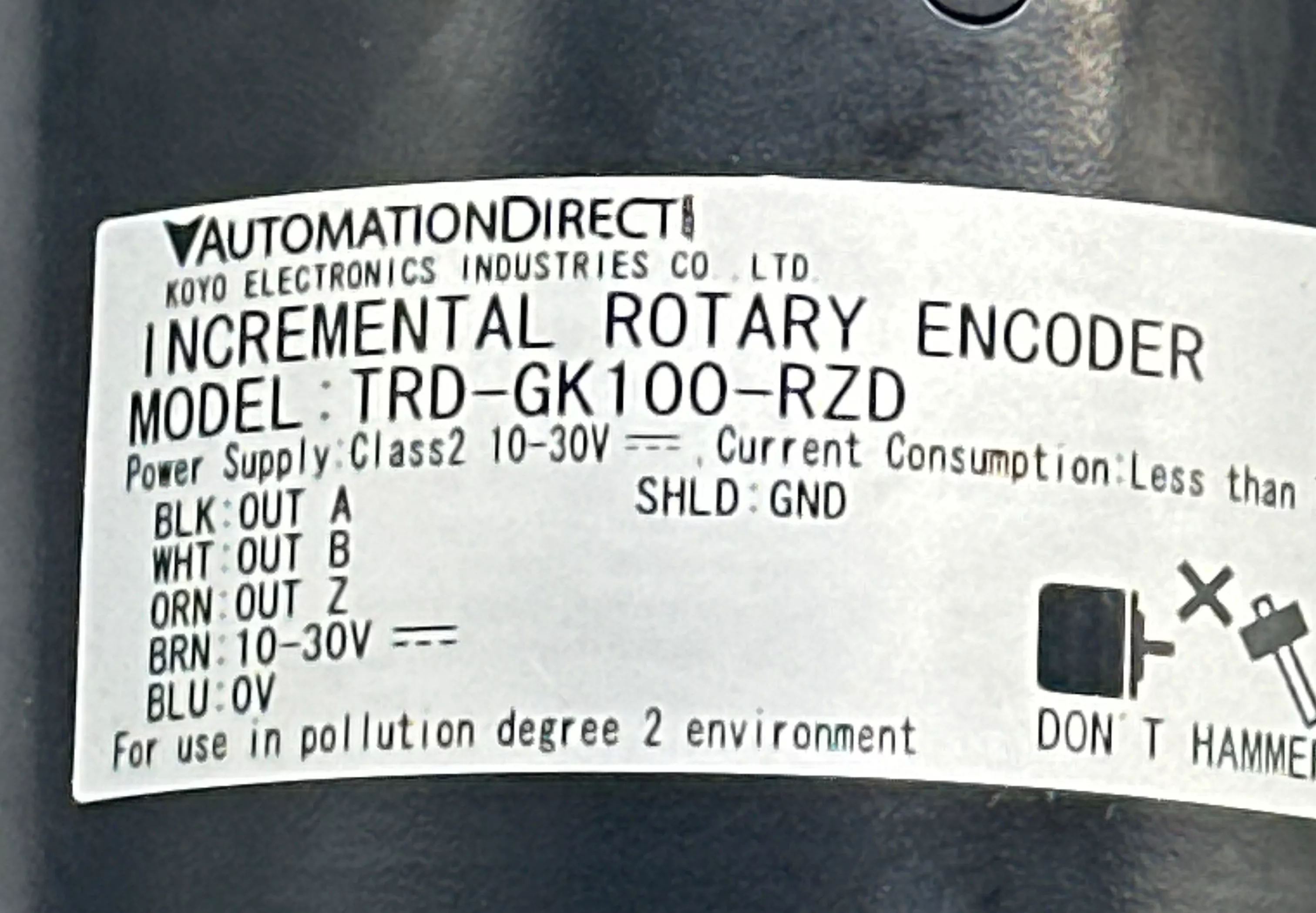

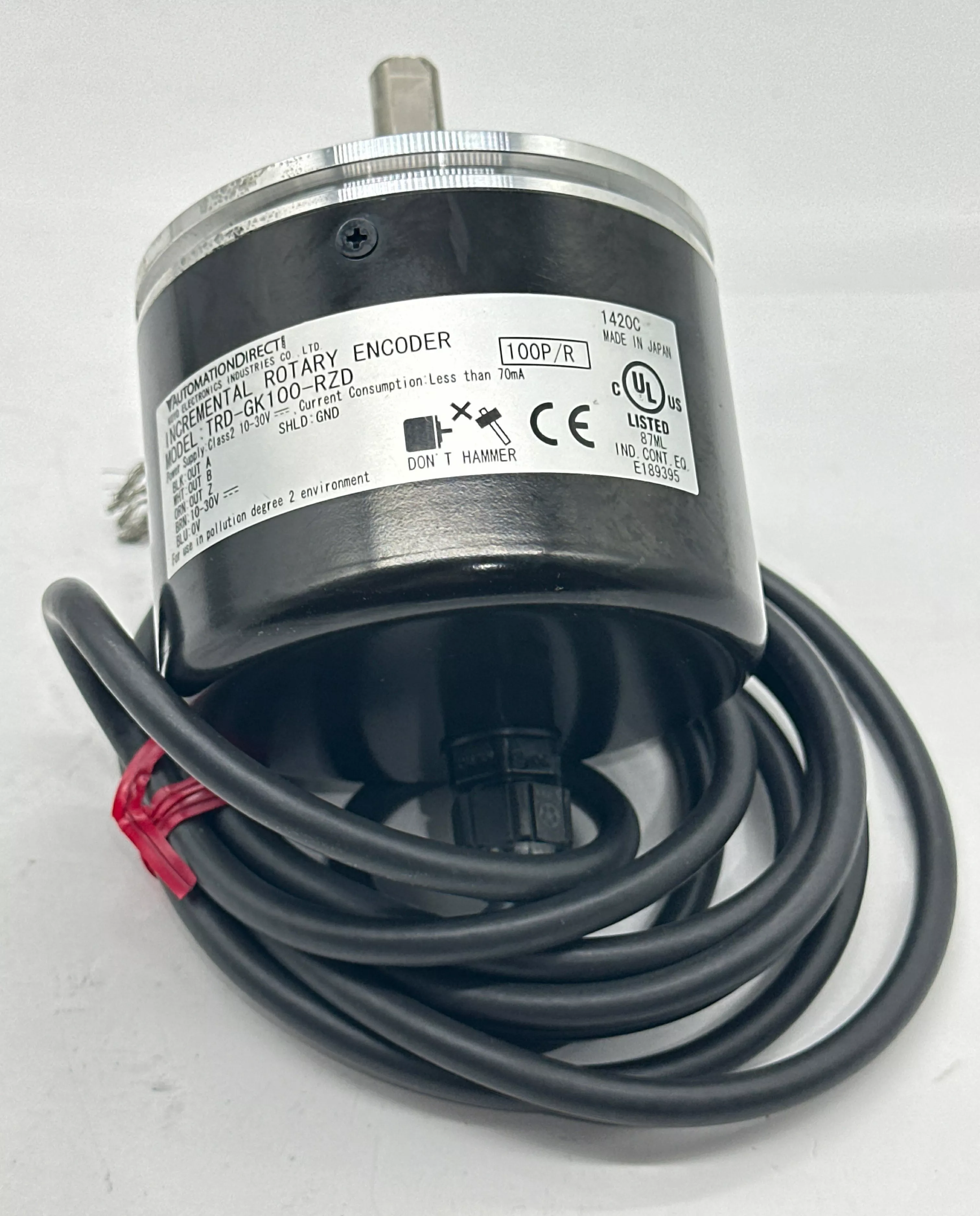

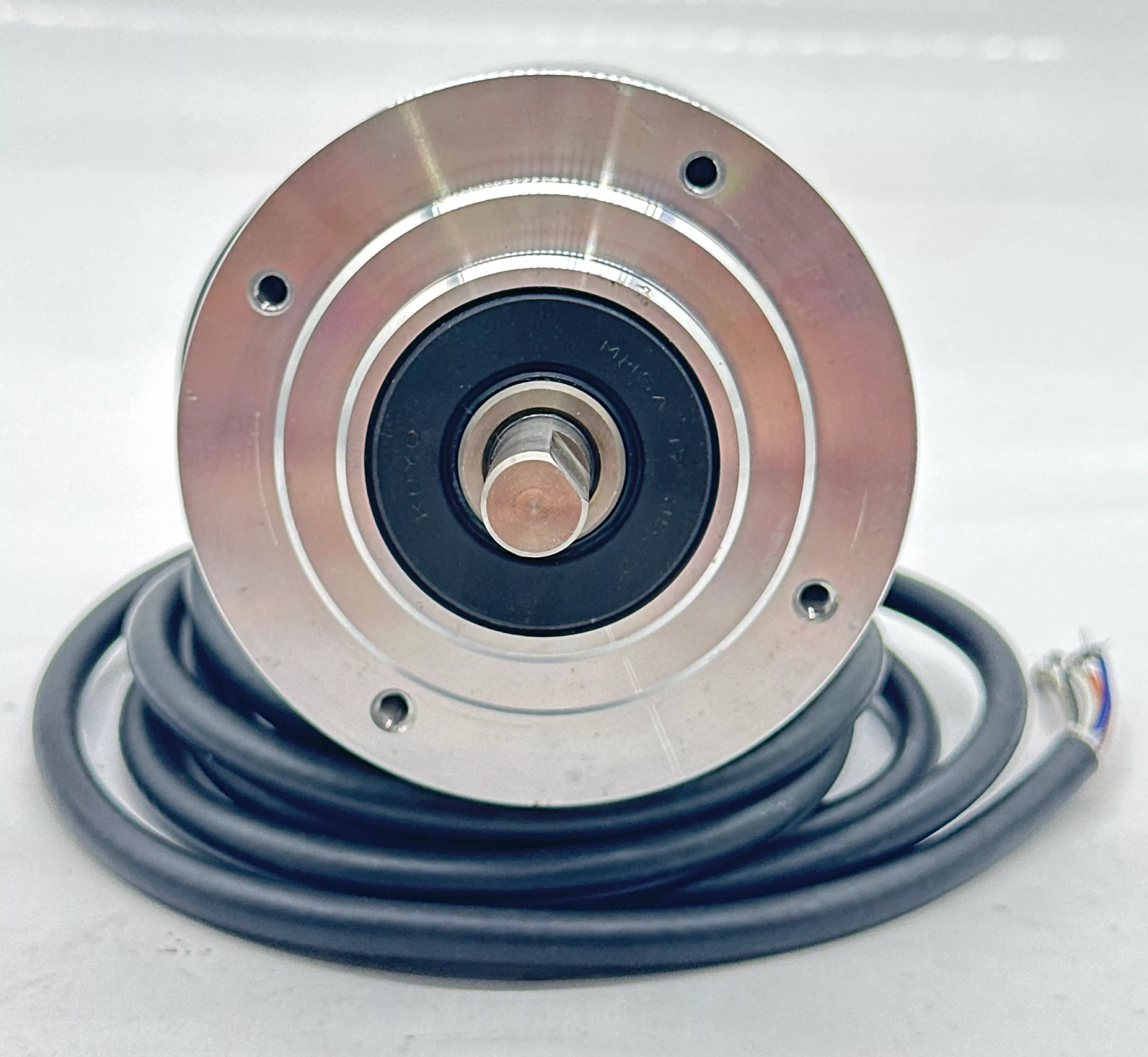

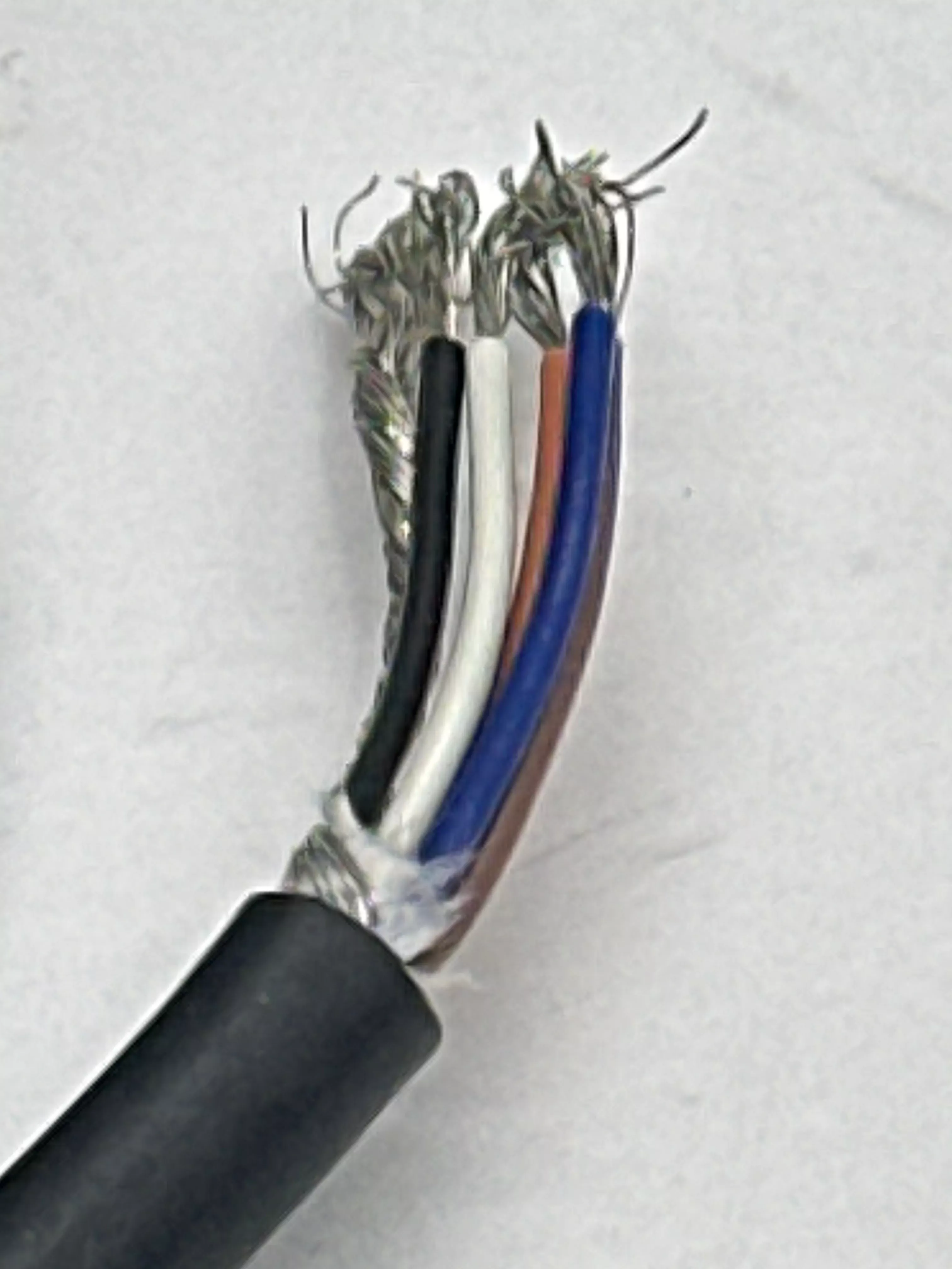

AutomationDirect TRD-GK100-RZD Incremental Rotary Encoder

The AutomationDirect TRD-GK100-RZD is a heavy-duty incremental rotary encoder designed for industrial applications requiring precise motion detection and durability. Below are its detailed technical specifications: Electrical Specifications: Power Supply Voltage: 10 to 30 VDC Current Consumption (No Load): 50 mA max at <16 VDC; 70 mA max at ≥16 VDC Output Configuration: Push-pull (totem pole) Output Signals: Quadrature A and B phases with Z (index) Output Current: 30 mA max (sink/source) Output Voltage Levels: High (H): [Power supply voltage - 4V] min Low (L): 2V max Maximum Response Frequency: 100 kHz Maximum Operating Speed: 5,000 rpm Duty Ratio (Symmetry): 50% ±25% Index Signal Width: 25% to 150% for resolutions ≤400 ppr 1° ±30' for resolutions ≥500 ppr Protection: Short-circuit protection between output and power supply, and between output and 0V Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   8.00

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   260653 4.S4.4.3
