In stock 1 available

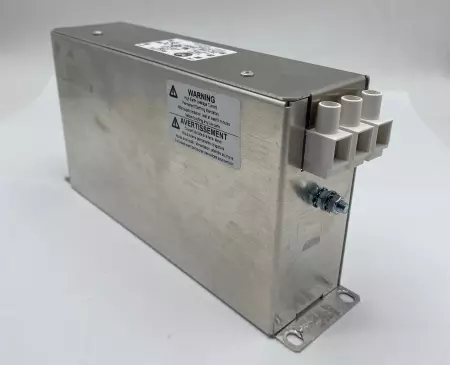

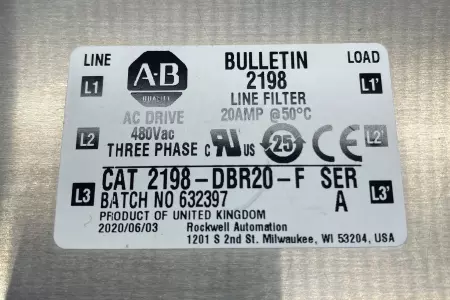

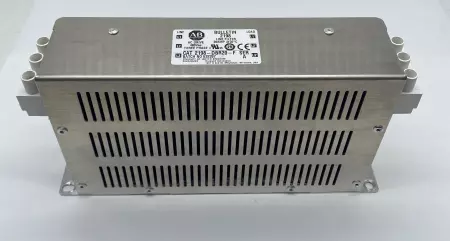

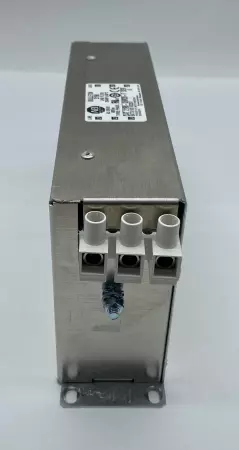

The Allen-Bradley 2198-DBR20-F is a 20A EMC (Electromagnetic Compatibility) line filter designed for use with the Kinetix® 5700 servo drive system. This line filter helps mitigate electrical noise and ensures compliance with EMC standards, enhancing the performance and reliability of your motion control system. Key Specifications: Current Rating: 20 A Voltage Rating: Up to 528V AC, suitable for both single-phase and three-phase systems Frequency: 50/60 Hz Power Loss: Approximately 4.2 W at rated current Leakage Current: Typical leakage current is 30 mA Operating Temperature: 0°C to 50°C (32°F to 122°F) Dimensions: Approximately 230 mm (9.06 in.) in height, 116 mm (4.57 in.) in width, and 55 mm (2.16 in.) in depth Mounting: Panel mount with M5 mounting bolts; recommended torque is 2.0 N•m (17.7 lb•in) Certifications: Complies with relevant EMC and safety standards Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 5.00
Depth: 12.00
Length: 12.00
Width: 12.00
SKU: 260693 4.S8.16.3
