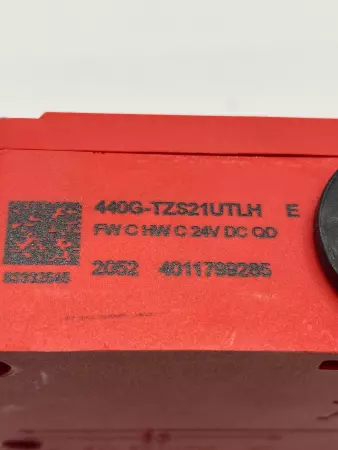

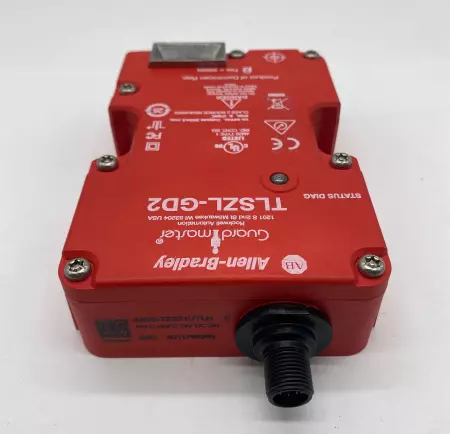

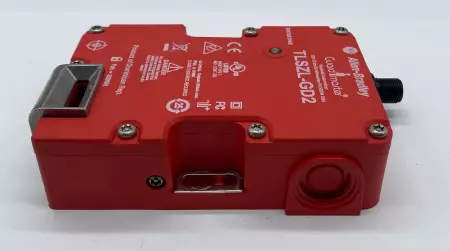

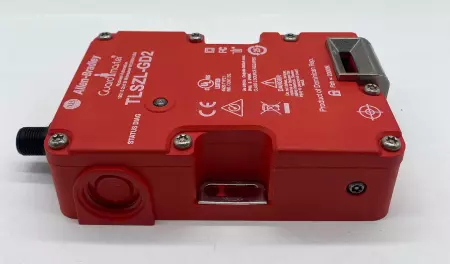

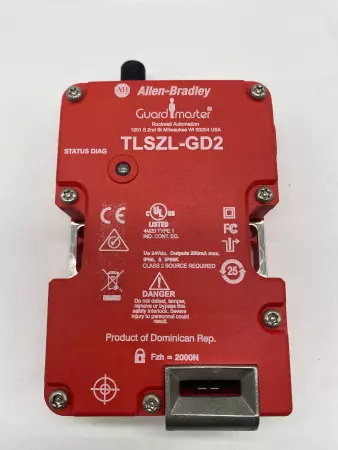

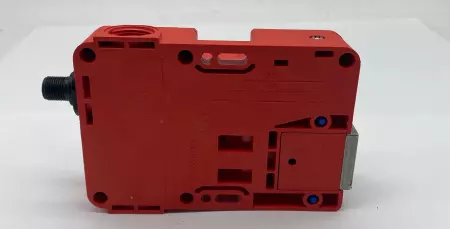

Allen-Bradley TLSZL-GD2 Guard Master Safety Interlock Switch

The Allen-Bradley TLSZL-GD2 Guardmaster Safety Interlock Switch is a tongue-operated, guard-locking interlock switch designed to enhance safety in industrial environments. It ensures that machine guards remain closed until hazardous conditions have been mitigated, thereby protecting personnel from potential dangers associated with machinery operation. Key Features: Guard Locking Mechanism: Utilizes a power-to-lock (PTL) principle, where the guard door remains locked when power is applied to the solenoid. This ensures that the guard cannot be opened until it is safe to do so. High Holding Force: Provides a robust locking force of up to 2000 N (450 lbs), ensuring the guard remains securely closed during machine operation. RFID Door Target: Equipped with a uniquely coded RFID door sensor that detects the presence and position of the actuator key. This feature enhances safety by ensuring the system can detect if the actuator key is broken or missing, preventing unauthorized access. Solid-State Outputs: Features two safety PNP outputs and one auxiliary PNP output, replacing traditional mechanical contacts. This design enhances reliability and extends the operational lifespan of the switch. Ingress Protection: Rated at IP69K, making it suitable for harsh washdown environments commonly found in industries such as food and beverage, pharmaceuticals, and semiconductors. Technical Specifications: Operating Voltage: 24V DC Safety Outputs: Two PNP OSSD (Output Signal Switching Device) outputs Auxiliary Output: One PNP output for status monitoring Response Time: < 260 ms Approach Directions: The actuator can approach the switch in three possible entry slot positions, providing flexibility in installation. Mounting Considerations: To prevent potential interference from inductive fields, maintain a minimum distance of 75 mm (3 inches) between the TLSZL-GD2 switch and other safety switches, such as the 440G-LZ guard locking switch or the 440N-Z SensaGuard™ switch. Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   5.00

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   260695 4.S8.16.4
