In stock 1 available

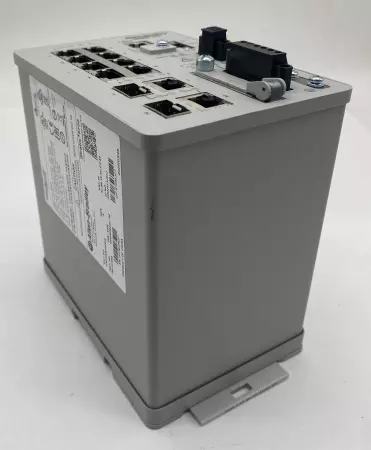

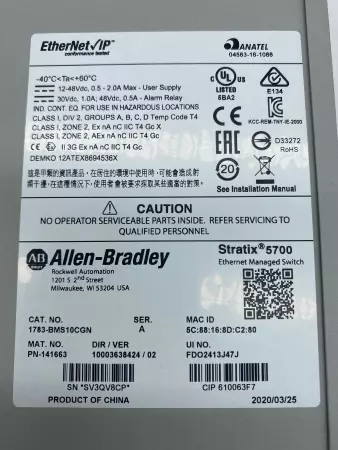

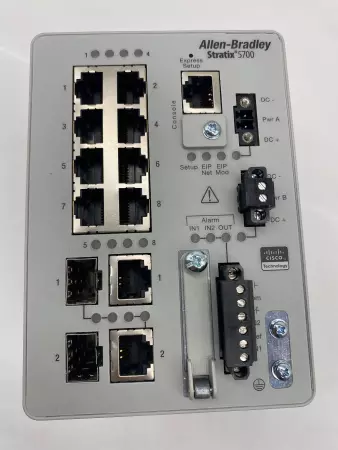

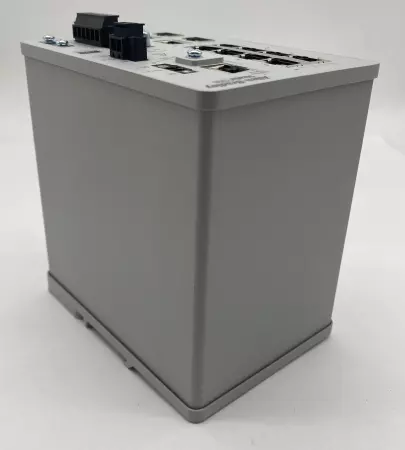

The Allen-Bradley 1783-BMS10CGN is a managed industrial Ethernet switch from the Stratix® 5700 series, designed to enhance network performance and security in industrial environments. This switch offers a combination of Fast Ethernet and Gigabit Ethernet ports, along with advanced features to support complex network architectures. Key Specifications: Ports: 8 Fast Ethernet (10/100 Mbps) copper ports 2 Gigabit Ethernet (10/100/1000 Mbps) combo ports, supporting either copper or SFP (fiber) connections Features: Full software configuration Supports Common Industrial Protocol (CIP) Sync for time synchronization Network Address Translation (NAT) for IP address mapping Device Level Ring (DLR) for network redundancy Power Supply: Operates on an external 12...48V DC power source Power consumption: 15 W at 24V DC and 40 °C (104 °F); maximum of 20 W Physical Characteristics: Dimensions (H x W x D): 130 x 91 x 109 mm (5.1 x 3.6 x 4.3 inches) Weight: Approximately 1.38 kg (3.05 lbs) Mounting: DIN rail (top hat rail) Enclosure: Open-style with IP30 protection rating Environmental Specifications: Operating temperature: -40 to 60 °C (-40 to 140 °F) Storage temperature: -40 to 85 °C (-40 to 185 °F) Relative humidity: 5% to 95% non-condensing Shock (operating): 30 g Vibration (operating): 5 Hz to 500 Hz Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 7.00
Depth: 12.00
Length: 12.00
Width: 12.00
SKU: 260697 4.S5.15.2
