In stock 3 available

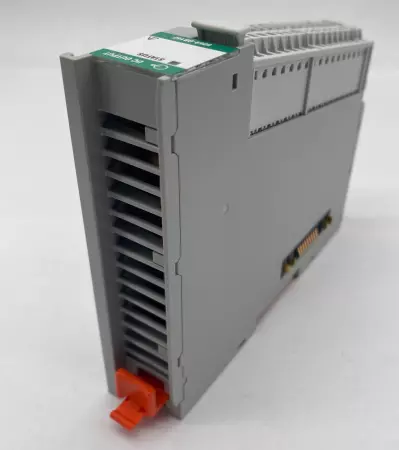

The Allen-Bradley 5069-OB16F is a high-performance, 16-channel sourcing digital output module within the Compact 5000™ I/O series, designed to provide fast and reliable control in industrial automation systems. This module is compatible with CompactLogix™ 5380, Compact GuardLogix® 5380, and CompactLogix 5480 controllers, serving as local I/O and offering seamless integration for high-speed applications. Key Specifications: Output Channels: 16 sourcing digital outputs Output Voltage Range: 10 to 32V DC Current per Channel: 0.5 A Total Module Current: 8 A Output Delay Time: 0.1 ms (on/off) Power Dissipation: 3.25 W Thermal Dissipation: 11.09 BTU/hr Dimensions (HxWxD): 138 x 22 x 105 mm (5.43 x 0.87 x 4.15 in.) Operating Temperature: 0°C to 60°C (32°F to 140°F) Storage Temperature: -40°C to 85°C (-40°F to 185°F) Relative Humidity: 5% to 95% non-condensing Vibration: 4.6 g at 10...500 Hz Shock (Operating): 30 g Shock (Non-operating): 50 g Certifications: c-UL-us, CE, RCM, KC, EAC, and UL Class I Division 2
Condition: Used
Weight: 3.00
Depth: 8.00
Length: 8.00
Width: 8.00
SKU: 260703 4.S6.16.3
