In stock 3 available

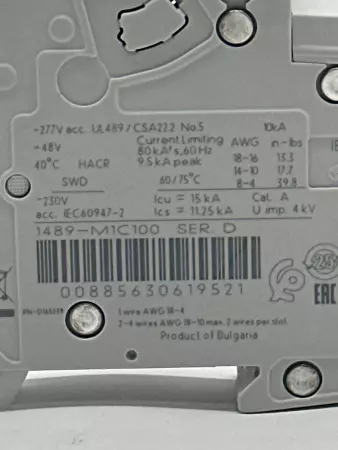

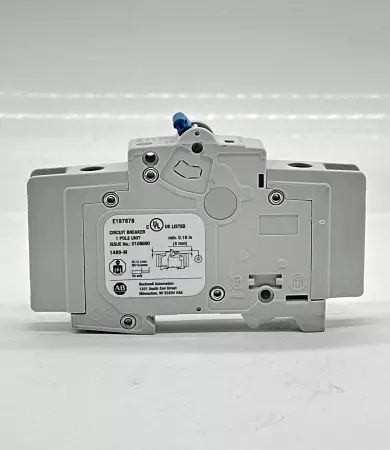

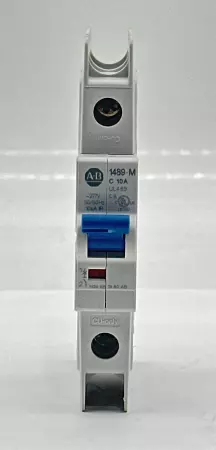

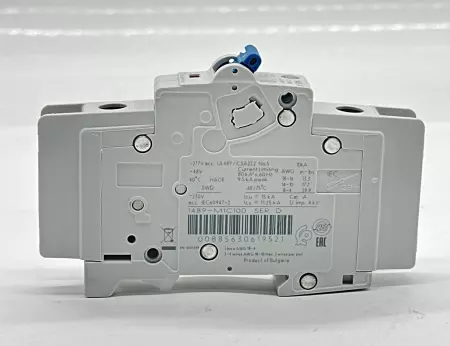

The Allen-Bradley 1489-M1C100 is a single-pole miniature circuit breaker (MCB) designed for branch circuit protection in both industrial and commercial applications. Part of the 1489-M series, it offers reliable overcurrent protection and adheres to international standards. Key Specifications: Current Rating: 10 Amperes Number of Poles: 1 Tripping Characteristic: Type C (suitable for inductive loads with moderate inrush currents) Rated Voltage: AC: Up to 277V DC: Up to 48V Breaking Capacity: 10 kA Mounting Style: DIN Rail Mount Terminal Type: Screw Standards Compliance: UL 489, CSA C22.2 No. 5.1, EN/IEC 60947-2, CE Marked Features: Thermal-Magnetic Trip Mechanism: Provides both overload and short-circuit protection. Current Limiting: Designed to limit let-through energy, enhancing protection for downstream components. HACR Rating: Suitable for Heating, Air Conditioning, and Refrigeration applications. SWD (Switch Duty) Rating: Approved for switching fluorescent lighting loads up to their current and voltage maximums.
Condition: Used
Weight: 3.00
Depth: 6.00
Length: 6.00
Width: 6.00
SKU: 260717 4.S3.4.3D
