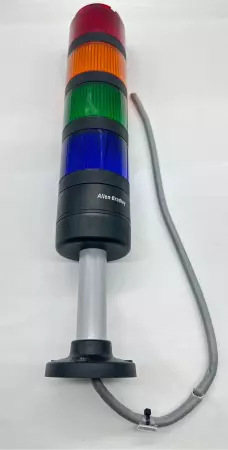

Allen-Bradley 856T-B24C Stack Light Signal Tower

Overview

The Allen-Bradley 856T-B24C Stack Light Signal Tower is designed to provide a visual indication of machine status or process conditions in industrial environments. It combines multiple colors and brightness levels to clearly communicate different operational states such as "running," "warning," or "stopped," enhancing both productivity and safety in industrial settings.

Key Specifications

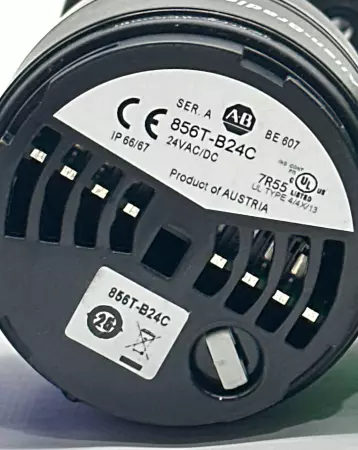

• Model: 856T-B24C
• Voltage Rating: 24 VDC

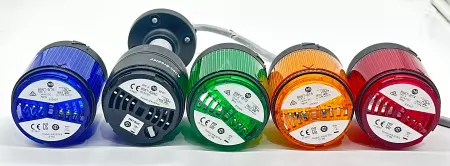

• Light Segments: 4 colors (Red, Amber, Green, Blue)

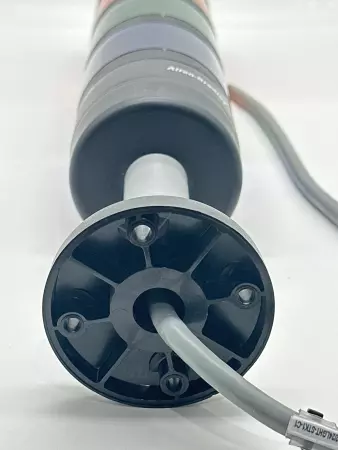

• Mounting Type: Base mounting or pole mounting
• Operating Temperature: -25°C to 50°C (-13°F to 122°F)
• Protection Rating: IP65 (dust-tight and protected against water jets)
• Dimensions: 240 mm (height) x 50 mm (diameter)
• Current Consumption: 0.15 A (max at 24VDC)

Features

• Multi-color LED lights for clear indication of machine or process status
• Durable and weather-resistant design, suitable for industrial environments
• Supports multiple mounting options, including pole and base mount
• Energy-efficient LED technology
• Visible from a long distance, enhancing operational visibility

Condition: Used

Weight:   7.00

Depth:   8.00

Length:   8.00

Width:   16.00

SKU:   260733
