In stock 1 available

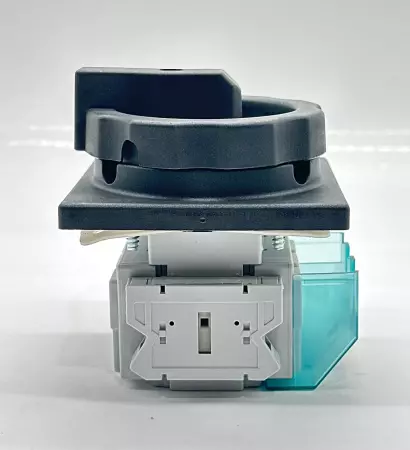

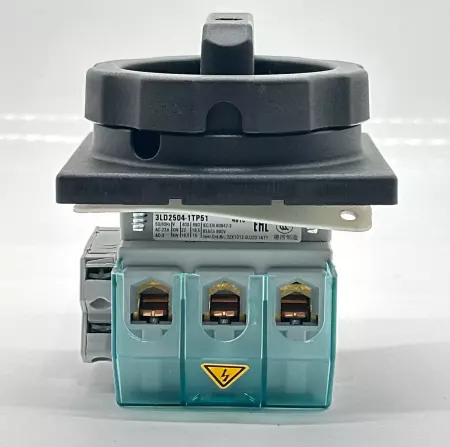

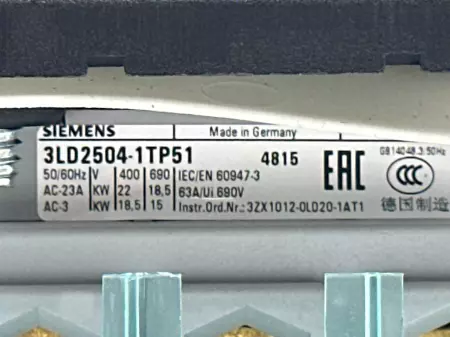

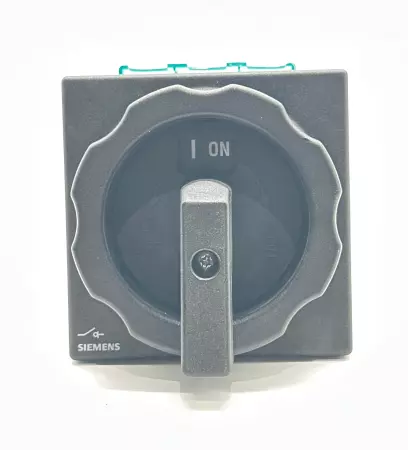

The Siemens 3LD2504-1TP51 is a SENTRON series switch disconnector designed for use as a main switch in electrical systems. This 3-pole device has a rated operational current of 63 A and supports an operating power of up to 22 kW at AC-23 A and 400 V. It features a front-mounted design with a black rotary operating mechanism and includes one normally closed (NC) and one normally open (NO) auxiliary contact. The handle is mounted using a 4-hole configuration. radwell.com Key Specifications: Rated Operational Current (Iu): 63 A Operating Power at AC-23 A (400 V): 22 kW Number of Poles: 3 Mounting Type: Front-mounted Auxiliary Contacts: 1 NC, 1 NO Actuating Element: Black rotary handle Handle Mounting: 4-hole configuration Dimensions (H x W x D): 106 mm x 90 mm x 110.5 mm Net Weight: Approximately 0.43 kg
Condition: New
Weight: 3.00
Depth: 8.00
Length: 8.00
Width: 8.00
SKU: 260734 4.S10.1.2
