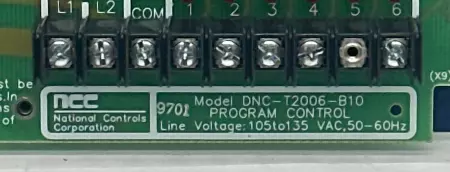

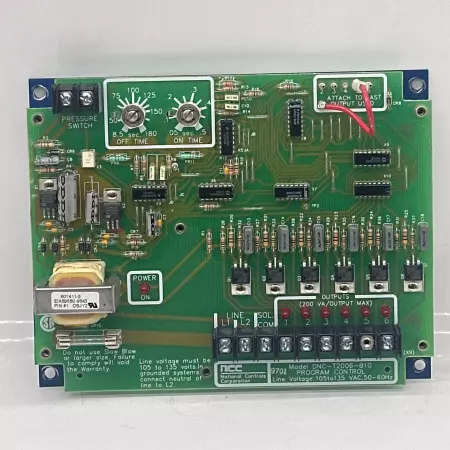

National Controls Corp. DNC-T2006-B10 Program Control Circuit Board

​The National Controls Corp. (NCC) DNC-T2006-B10 is a program control circuit board designed for pulse cleaning in baghouse dust collectors. This control board manages the sequencing of solenoid valves to ensure efficient cleaning of filter bags, maintaining optimal performance of dust collection systems. Key Features: Universal AC Input Voltage: Operates on 95 to 265 VAC, 50/60 Hz, accommodating a wide range of power sources. ​ Adjustable Timing: Allows precise control with ON times adjustable from 50 milliseconds to 600 seconds and OFF times from 1 to 999 seconds. ​ Microprocessor-Controlled: Utilizes digital microprocessor circuitry for accurate and repeatable pulse timing. ​ Display and Programming: Features a 3-digit, 7-segment LED display and simple programming using up, down, and select buttons. ​ Environmental Resilience: Conformally coated to protect against moisture, corrosion, and vibration, with an operating temperature range of -40°F to +150°F (-40°C to +66°C). Specifications: Outputs: 6 solid-state outputs, each rated for 150 VA maximum. ​ Circuit Protection: Equipped with a 3.15A fast-acting fuse and a 72J metal-oxide varistor at the input for enhanced safety. ​ Dimensions: Measures 6.75 inches in length, 4.75 inches in width, with mounting holes spaced at 6.25 inches (length) and 4.25 inches (width), requiring a NEMA 4 enclosure of 8" x 6" x 3.5".

Condition: Used

Weight:   8.00

Depth:   12.00

Length:   12.00

Width:   12.00

SKU:   260817 4.S2.12.2
