In stock 1 available

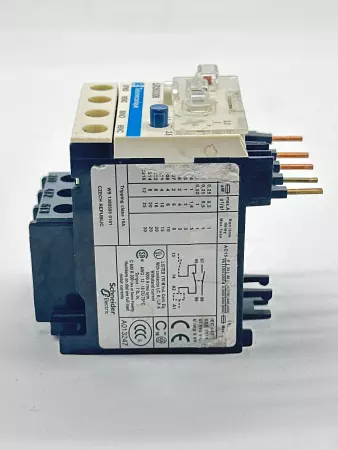

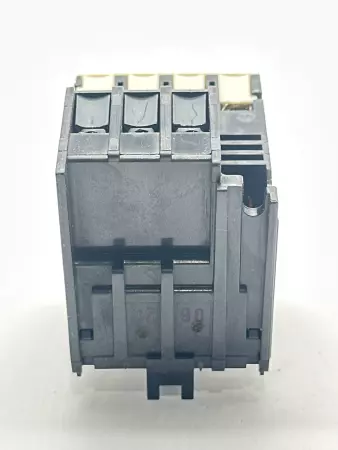

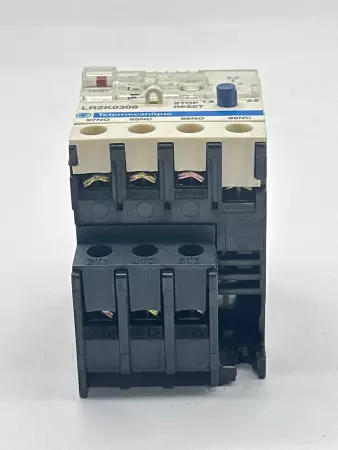

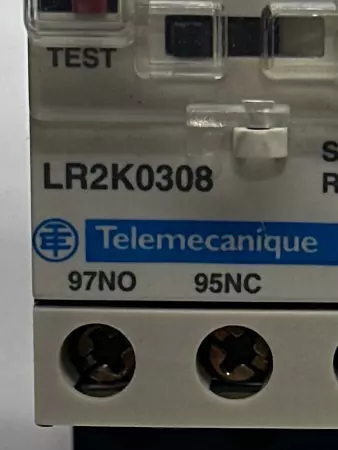

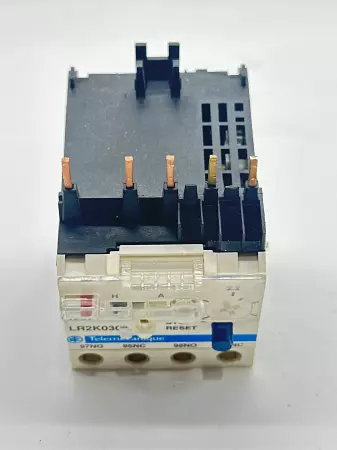

The Schneider Electric LR2K0308 is a differential thermal overload relay from the TeSys K series, designed to protect motors against overloads and phase failures. Key Specifications: Thermal Protection Adjustment Range: 1.8 to 2.6 A Rated Insulation Voltage (Ui): 690 V Auxiliary Contacts: 1 Normally Open (NO) + 1 Normally Closed (NC) Mounting Options: Under contactor, on a plate with specific accessories, or on a DIN rail with specific accessories Dimensions (H x W x D): 58 mm x 45 mm x 65 mm Net Weight: 0.145 kg Operating Ambient Temperature: -20 to 55 °C without derating Standards Compliance: IEC 60947, UL, CSA, UKCA Degree of Protection: IP2X This relay is compatible with TeSys K contactors, including models LC1K, LP1K, LC7K, and LP4K. It offers adjustable thermal protection within the specified range and features both manual and automatic reset options. The device also provides phase failure sensitivity, enhancing motor protection. Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 3.00
Depth: 6.00
Length: 6.00
Width: 6.00
SKU: 260839 4.S4.15.3
