In stock 6 available

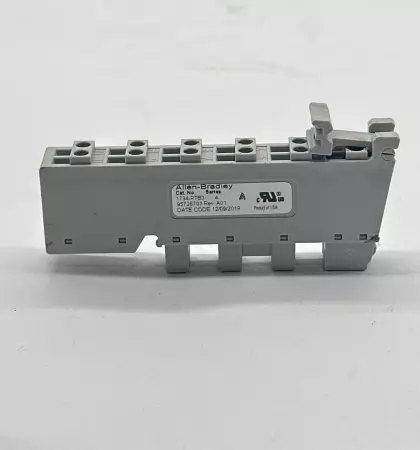

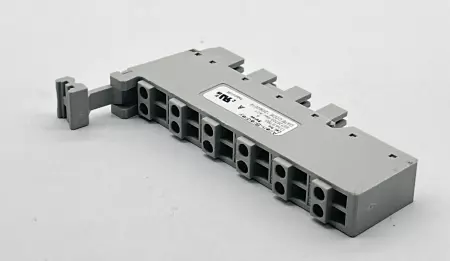

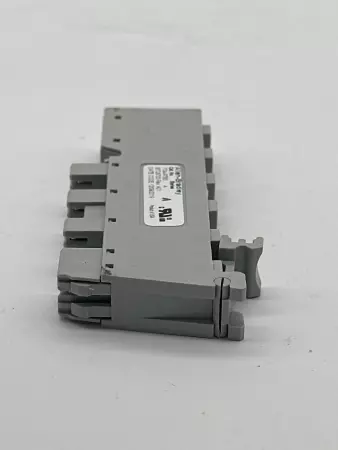

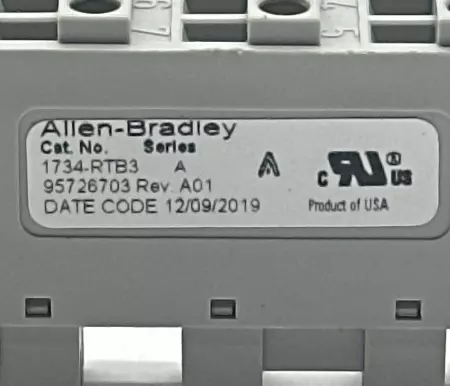

The Allen-Bradley 1734-RTB3 is a 12-terminal removable terminal block (RTB) designed for use with the POINT I/O™ system. It provides a secure and efficient way to connect field wiring to POINT I/O modules in industrial automation systems. Key Features: Terminal Count: 12 screw-clamp terminals for secure wiring connections. Compatibility: Works with POINT I/O modules, supporting a modular and flexible distributed I/O system. Mounting: Easily attaches to a mounting base for straightforward installation and maintenance. Technical Specifications: Maximum Current: Supports up to 10 A. Wire Size Accommodation: Accepts wire sizes from 22 AWG (0.25 mm²) to 14 AWG (2.5 mm²), suitable for both solid and stranded wires with 75 °C or higher rating and a maximum insulation of 3/64 in (1.2 mm). Screw Torque: Recommended tightening torque of 0.5…0.6 N•m (5…7 lb•in). Installation Considerations: The modular system allows independent selection of I/O, termination style, and network interface. Modules slide together for easy installation and removal, simplifying maintenance. The removable wiring system reduces installation time and costs while facilitating troubleshooting. Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 2.00
Depth: 6.00
Length: 6.00
Width: 6.00
SKU: 260840 4.S4.15.3
