In stock 3 available

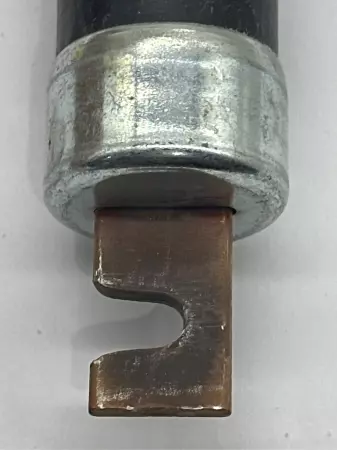

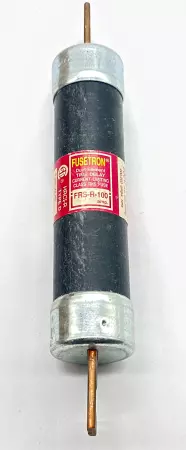

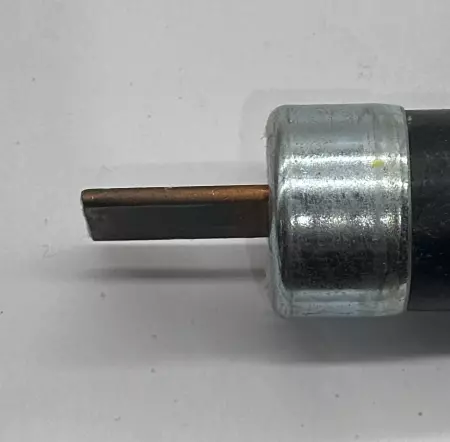

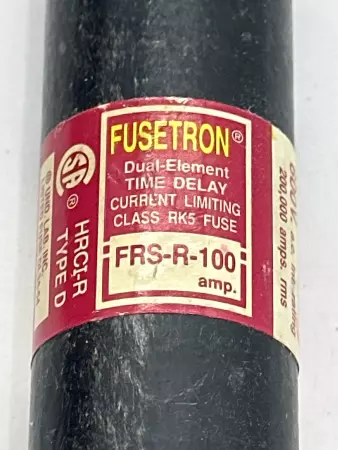

The Bussmann FRS-R-100 Fusetron® is a 100-amp, dual-element, time-delay fuse designed to provide advanced protection in electrical circuits. As a Class RK5 fuse, it operates at 600 volts AC and 300 volts DC, making it suitable for a wide range of industrial applications. Key Features: Time-Delay Performance: Offers a minimum 10-second delay at 500% of the rated current, allowing temporary inrush currents, such as motor startups, to pass without unnecessary interruptions. Current-Limiting: Provides current limitation to protect downstream components from high fault currents. High Interrupting Rating: Capable of interrupting up to 200 kA at 600 VAC and 20 kA at 300 VDC, ensuring robust protection against short circuits. Physical Specifications: Dimensions: Length: Approximately 7.88 inches (200.15 mm) Diameter: Approximately 1.11 inches (28.19 mm) Construction: Features a fiberglass body with knife blade terminals for secure connections. Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 3.00
Depth: 6.00
Length: 6.00
Width: 10.00
SKU: 260847 4.S8.18.3
