In stock 3 available

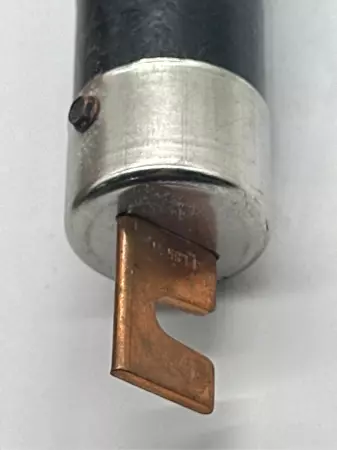

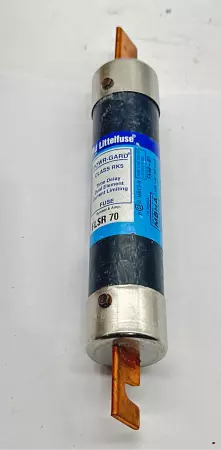

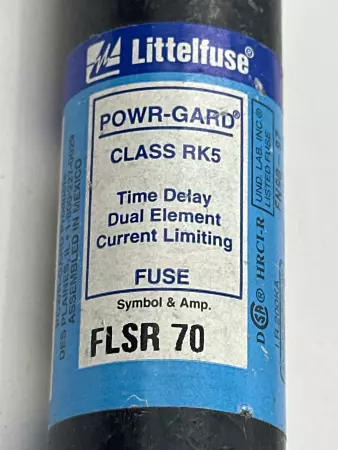

The Littelfuse FLSR 70 Powr-Gard® is a 70-amp, dual-element, time-delay fuse designed for industrial and commercial applications requiring reliable overcurrent protection. Classified as a Class RK5 fuse, it operates at 600 volts AC and 300 volts DC, offering high interrupting ratings suitable for safeguarding various electrical systems. Key Features: Time-Delay Performance: Provides a minimum 10-second delay at 500% of the rated current, allowing temporary inrush currents, such as motor startups, to pass without unnecessary interruptions. High Interrupting Capacity: Capable of interrupting fault currents up to 200,000 amperes AC and 20,000 amperes DC, ensuring robust protection against short-circuit events. Current-Limiting Design: Reduces the potential impact of high fault currents by limiting the peak let-through current, thereby enhancing the protection of downstream equipment. Physical Specifications: Dimensions: Diameter: Approximately 1-5/16 inches (33.3 mm) Length: Approximately 7-7/8 inches (200 mm) Construction: Features a cylindrical body with knife blade terminals, facilitating secure and straightforward installation in compatible fuse holders. Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 2.00
Depth: 6.00
Length: 6.00
Width: 10.00
SKU: 260848 4.S8.16.4
