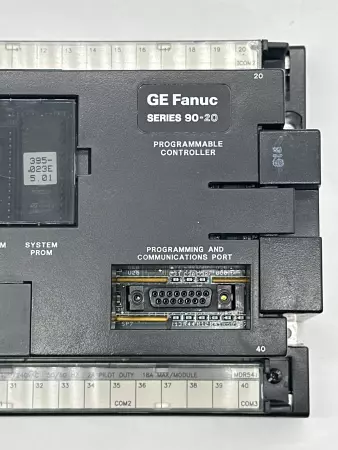

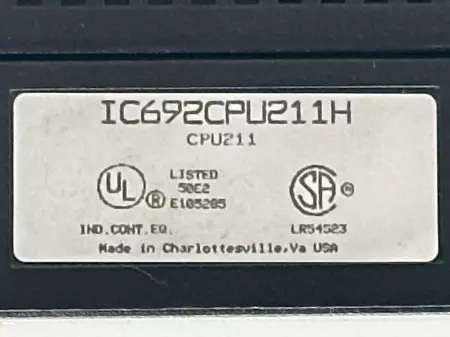

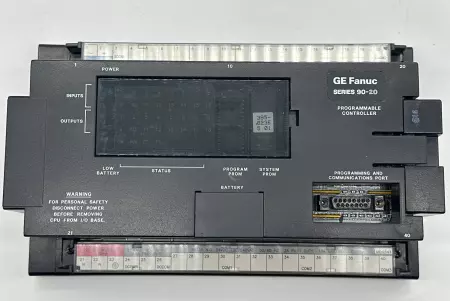

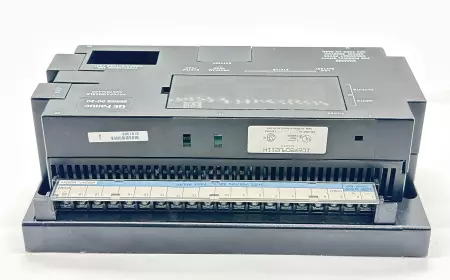

GE Fanuc IC692CPU211H Programmable Logic Controller

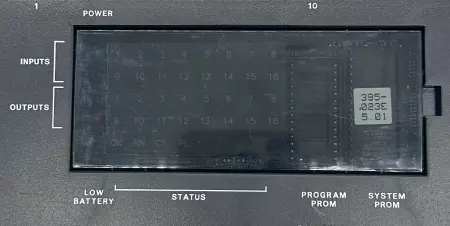

The GE Fanuc IC692CPU211H is a Programmable Logic Controller (PLC) CPU module from the Series 90-20 family, designed for industrial automation and process control. It provides efficient processing capabilities, making it suitable for small to medium-scale applications. Technical Specifications: Processor: 8 MHz Intel 80188 User Program Memory: 1K words maximum Registers & Coils: Registers: 256 words Internal Coils: 1024 High-Speed Counter: 10 kHz Type A, ideal for rapid counting operations Memory Backup: Lithium battery-powered, providing up to 5 years of data retention Program Storage: Supports EEPROM and EPROM storage, allowing user programs to run directly from PROM Scan Rate: 18.0 ms per 1K of Boolean logic, ensuring quick processing of control logic LED Status Indicators: Power Indicator: Displays power status Low Battery Indicator: Alerts when the memory backup battery needs replacement Input & Output Status Indicators: Shows the real-time status of input and output signals STOP Indicator: Lights up when the CPU is in stop mode CPU Status Indicators: Includes OK and RUN (RN) status lights High-Speed Counter Indicators: COUNT (CT) and PRELOAD/STROBE (PL) for monitoring fast count operations Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   10.00

Depth:   6.00

Length:   12.00

Width:   15.00

SKU:   260882 4.S5.1.2
