In stock 1 available

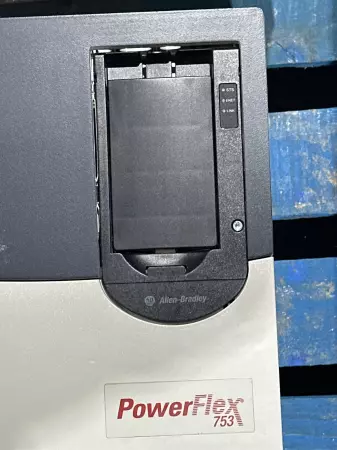

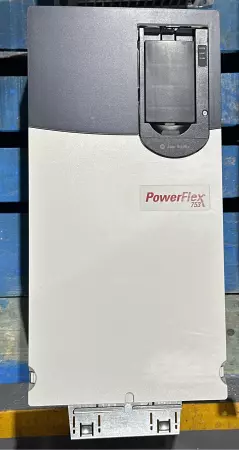

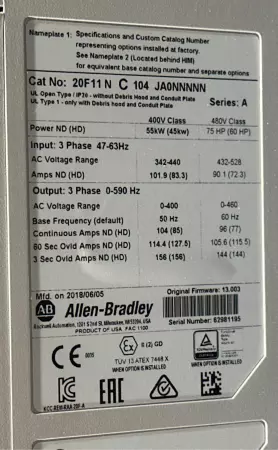

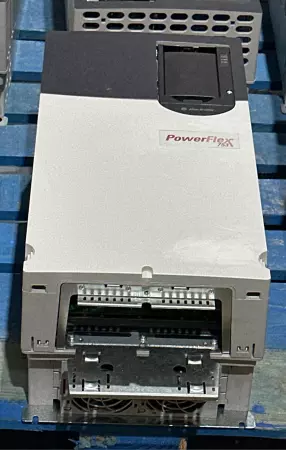

The Allen-Bradley 20F11NC104JA0NNNNN is a PowerFlex® 753 AC Drive designed to provide advanced motor control for industrial applications. This drive is part of the PowerFlex 750 series, recognized for its flexibility, performance, and ease of integration. Key Specifications: Power Rating: Normal Duty: 55 kW (approximately 75 HP) Heavy Duty: 45 kW Current Rating: 104 Amps Voltage Class: 400V AC, 3-phase Frame Size: 5 Enclosure Type: Open Type (IP20/IP00, NEMA/UL Type Open) Input Type: AC Input with Precharge, includes DC Terminals Filtering: EMC filtering included, with CM jumper installed Dynamic Braking: Equipped with an internal braking transistor Human Interface Module (HIM): Not included (Blank) Features: Embedded I/O: Comes standard with built-in inputs and outputs, facilitating straightforward integration into control systems. Option Slots: Provides three option slots to accommodate additional safety features, feedback modules, or communication adapters, enhancing the drive's adaptability to various applications. Cooling Method: Utilizes forced air cooling to maintain optimal operating temperatures. Applications: The PowerFlex 753 AC Drive is suitable for a wide range of industrial applications, including: Pumps and Fans: Offers precise speed control for energy efficiency and process optimization. Conveyors: Ensures smooth operation and accurate speed regulation in material handling systems. Mixers and Agitators: Provides variable speed control to meet specific process requirements. Dimensions and Weight: Height: Approximately 900 mm (35.5 inches) Width: Approximately 400 mm (15.8 inches) Depth: Approximately 437.6 mm (17.2 inches) Weight: Approximately 29.23 lbs Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 85.00
Depth: 24.00
Length: 40.00
Width: 48.00
SKU: 260893 4.R2.6.5
