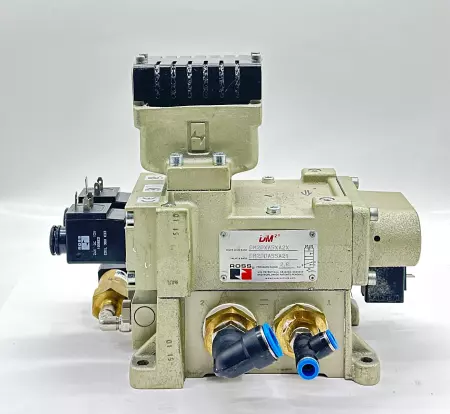

Ross DM2DDA55A21 Double Solenoid Valve and Base Assembly

Ross DM2DDA55A21 is a DM2® Series D double valve and base assembly, designed for safe and reliable control of pneumatic actuators in applications where energy isolation and safety exhaust are critical. It features dynamic monitoring and is commonly used in safety-related machine control systems. Specifications: Manufacturer: Ross Controls Model Number: DM2DDA55A21 Series: DM2® Series D Valve Type: Double valve with dynamic self-monitoring Function: 3/2 Normally Closed (safety exhaust valve) Port Size: 1/2" NPT Flow Rate (Cv): Approx. 3.2 Operating Pressure Range: 30–125 psig (2–8.6 bar) Voltage: 24V DC (solenoid control) Monitoring: Integrated self-monitoring system with electrical feedback Mounting: Base-mounted with included manifold/base Temperature Range: –10°C to +60°C (14°F to 140°F) Safety Category: Meets ISO 13849-1, can support up to Category 4 / PL e when properly integrated Applications: Presses, clamping systems, pneumatic actuators, and any application requiring controlled safe exhaust and energy isolation Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   22.00

Depth:   10.00

Length:   12.00

Width:   16.00

SKU:   260963 4.S9.8.3
