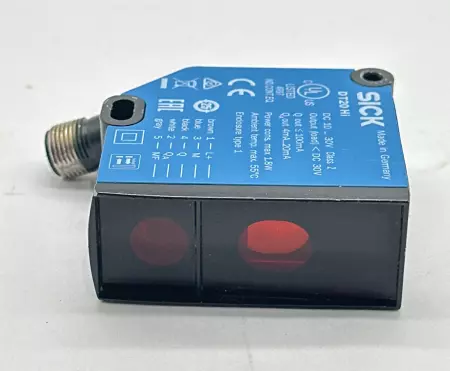

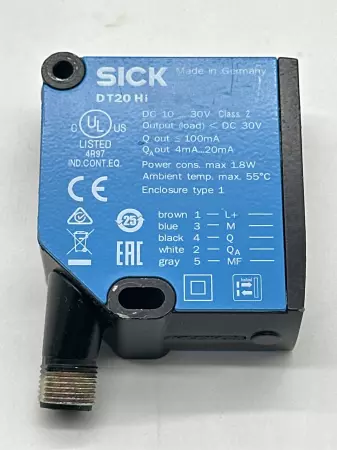

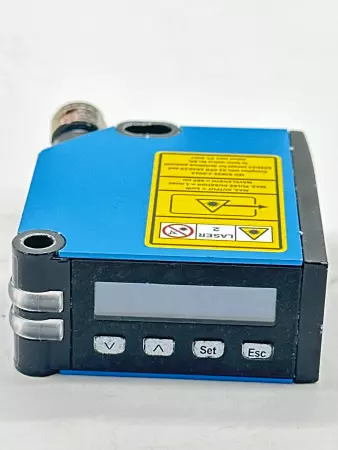

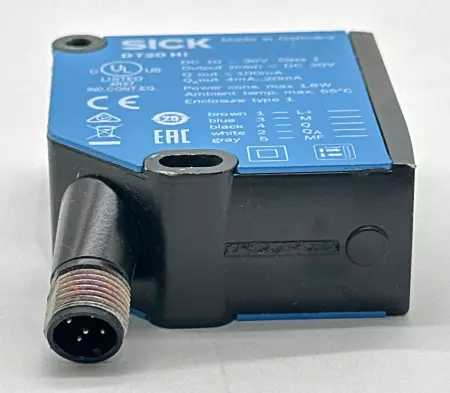

Sick DT20-HI Laser Distance Measurement Sensor

SICK DT20-HI is a high-accuracy laser distance measurement sensor, part of the DT20 series, optimized for precision positioning and object detection over short to mid-range distances. It's ideal for applications requiring stable performance on various surface types, including dark or shiny materials. Specifications: Manufacturer: SICK AG Model: DT20-HI Sensor Type: Laser Distance Measurement Sensor (Time-of-Flight) Measuring Range: Typically 100 to 1000 mm Measurement Accuracy: ±1 mm Repeatability: ±0.5 mm Light Source: Class 2 visible red laser (IEC 60825-1 compliant) Response Time: ~2–3 ms Output Types: – Analog: 4–20 mA or 0–10 V (selectable) – Digital: 1–2 PNP/NPN switching outputs (depending on version) Supply Voltage: 18–30 V DC Current Consumption: <150 mA Display/Interface: LED status indicators, teach-in pushbutton Communication Interface: Optional serial (RS-232/RS-485) with accessories Enclosure Rating: IP65 (dust and water resistant) Housing Material: Die-cast aluminum or coated metal Connector: M12, 5-pin industrial connector Operating Temperature: –10°C to +50°C Mounting: Standard mounting holes or optional bracket

Condition: Used

Weight:   3.00

Depth:   4.00

Length:   4.00

Width:   4.00

SKU:   260965 4.S3.0.3.3
