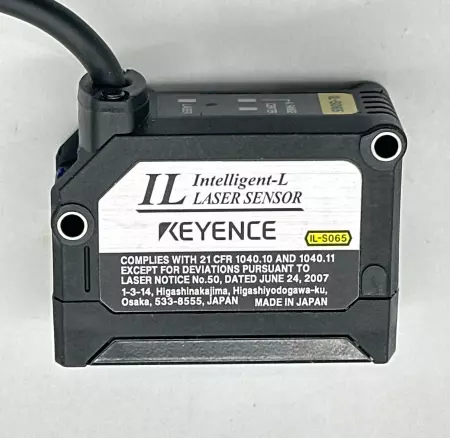

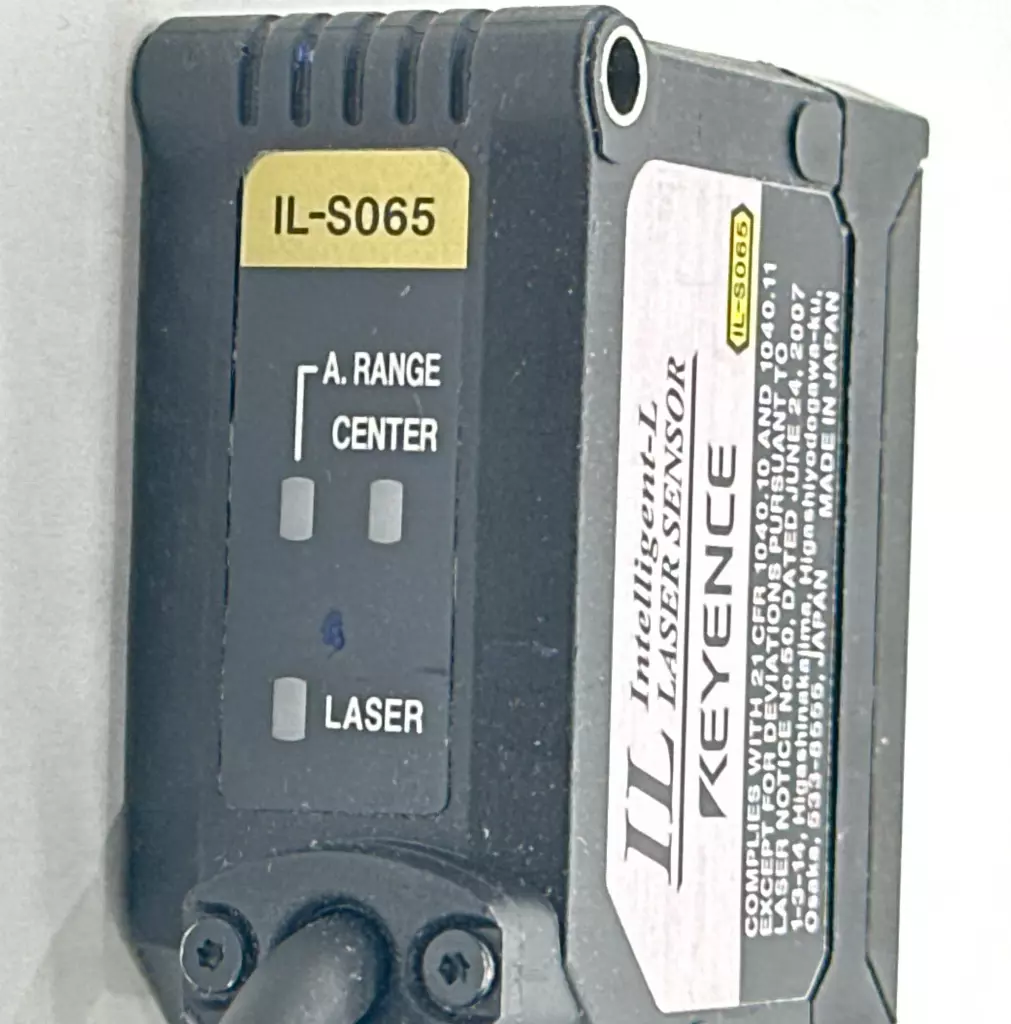

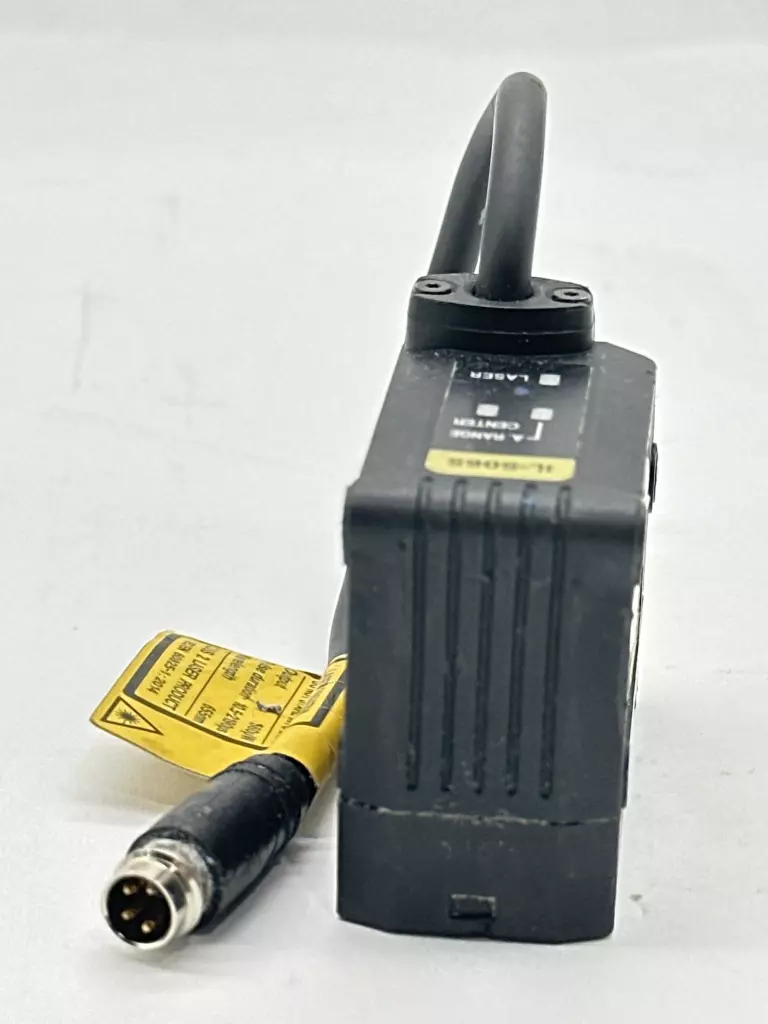

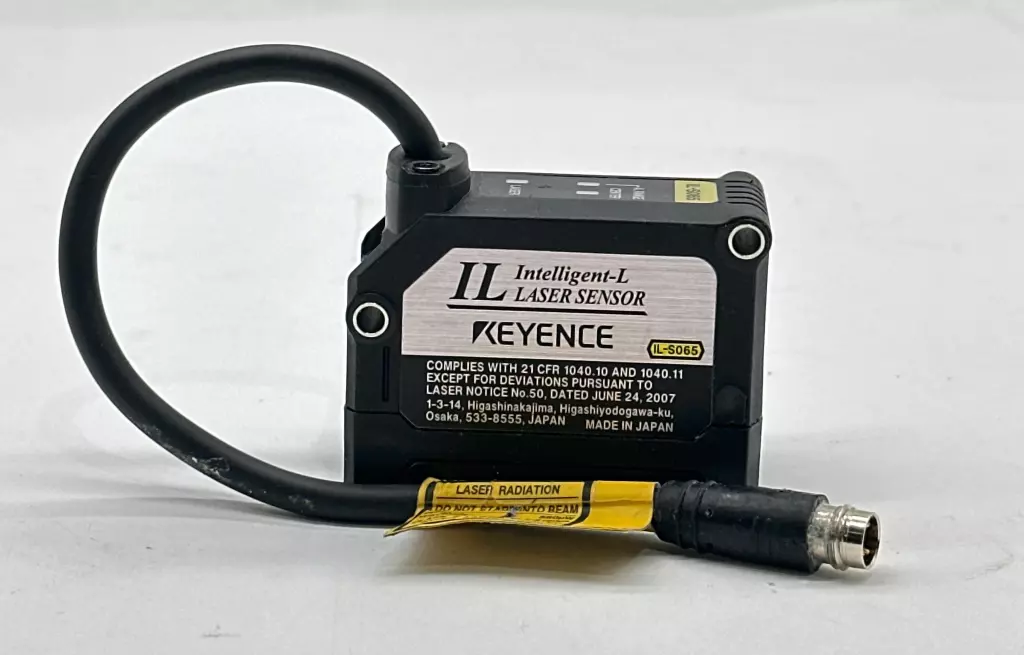

Keyence IL-S065 Intelligent-L Analog Laser Sensor

Keyence IL-S065 is a compact, high-precision analog laser sensor from the IL Series, designed for non-contact distance and displacement measurement. It features analog output, making it ideal for integration into automated systems requiring continuous feedback for positioning, inspection, or thickness monitoring.

Specifications:
Manufacturer: Keyence Corporation
Model: IL-S065
Sensor Type: CMOS Analog Laser Sensor (Intelligent Laser Series)
Measurement Range: ±32 mm (centered at 65 mm; total range: 33–97 mm)
Reference Distance: 65 mm
Repeatability: 5 μm (at reference distance)
Linearity: ±0.1% of F.S.
Light Source: Class 2 visible red semiconductor laser
Output Type:
– Analog: 4–20 mA / 0–10 V (switchable)
– Digital: NPN or PNP open collector (depending on amplifier module used)
Response Time: 1.5 ms (high-speed mode), adjustable
Protection Rating: IP67 (sensor head)
Cable Type: Integrated or connectorized (connects to amplifier unit)
Ambient Temperature: 0°C to +50°C
Applications: Thickness measurement, height detection, profile inspection, part positioning, assembly line QA Please review pictures carefully and let us know if you have any questions!
