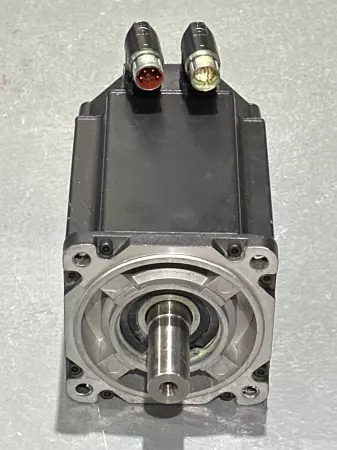

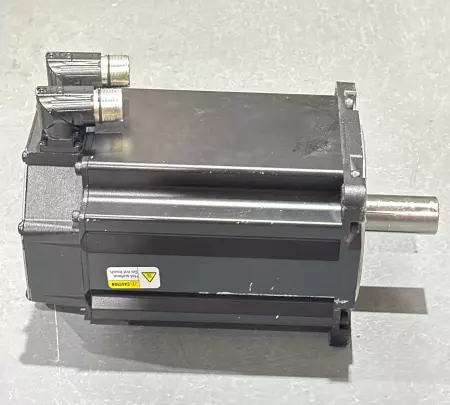

Allen-Bradley MPL-B540K-SK72AA SER.A AC Servo Motor, 7.25HP

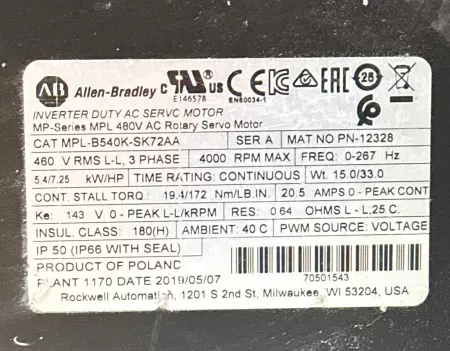

High-performance rotary servo motor built for demanding continuous-duty industrial automation applications. Part of the Allen-Bradley Kinetix MPL 480V series, this model delivers high torque, dynamic response, and robust performance for heavy-duty motion control. Technical Specifications: Catalog Number: MPL-B540K-SK72AA Voltage: 460 V RMS line-to-line, 3-phase Power Rating: 5.4 kW / 7.25 HP Max Speed: 4000 RPM Frequency Range: 0–267 Hz Continuous Stall Torque: 19.4 Nm / 172 lb-in Current (Continuous Peak): 20.5 A Torque Constant (Ke): 143 V L-L / KRPM (peak) Resistance (L-L @ 25 °C): 0.64 Ohms Insulation Class: 180 (Class H) Ambient Temp: 40 °C Time Rating: Continuous duty Protection Class: IP50 (IP66 with shaft seal) Weight: 15.0 kg / 33.0 lb PWM Source: Voltage controlled Enclosure: Inverter duty AC servo, UL/cUL/CE/EAC/KC certified Country of Origin: Poland Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   40.00

Depth:   12.00

Length:   14.00

Width:   20.00

SKU:   260987 4.R3.8.2
