In stock 1 available

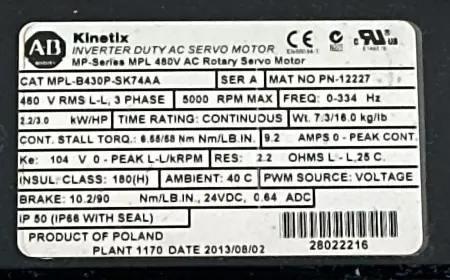

High-performance rotary servo motor built for continuous-duty industrial motion control. This unit from the Allen-Bradley Kinetix MPL 480V series features an integrated brake, making it suitable for applications that require static holding torque. Technical Specifications: Catalog Number: MPL-B430P-SK74AA Voltage: 460 V RMS line-to-line, 3-phase Power Rating: 2.2 kW / 3.0 HP Max Speed: 5000 RPM Frequency Range: 0–334 Hz Continuous Stall Torque: 6.55 Nm / 58 lb-in Current (Continuous Peak): 9.2 A Torque Constant (Ke): 104 V L-L / KRPM (peak) Resistance (L-L @ 25 °C): 2.2 Ohms Insulation Class: 180 (Class H) Ambient Temp: 40 °C Time Rating: Continuous duty Protection Class: IP50 (IP66 with shaft seal) Weight: 7.3 kg / 16.0 lb PWM Source: Voltage controlled Brake: 10.2 Nm / 90 lb-in, 24 VDC, 0.64 A Enclosure: Inverter duty AC servo, UL/cUL/CE certified Country of Origin: Poland Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 20.00
Depth: 8.00
Length: 8.00
Width: 16.00
SKU: 260988 4.S8.16.2
