In stock 2 available

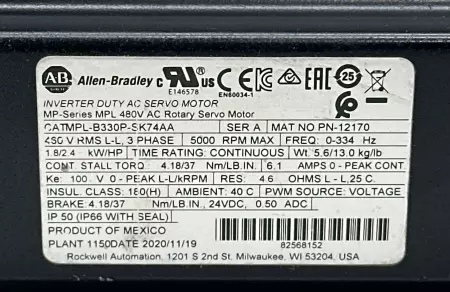

High-performance rotary servo motor designed for precision industrial motion control. This unit belongs to the Allen-Bradley Kinetix MPL 480V series and includes a factory-installed brake for holding torque in stop conditions. Technical Specifications: Catalog Number: MPL-B330P-SK74AA Voltage: 460 V RMS line-to-line, 3-phase Power Rating: 1.8 kW / 2.4 HP Max Speed: 5000 RPM Frequency Range: 0–334 Hz Continuous Stall Torque: 4.18 Nm / 37 lb-in Current (Continuous Peak): 6.1 A Torque Constant (Ke): 100 V L-L / KRPM (peak) Resistance (L-L @ 25 °C): 4.6 Ohms Insulation Class: 180 (Class H) Ambient Temp: 40 °C Time Rating: Continuous duty Protection Class: IP50 (IP66 with shaft seal) Weight: 5.6 kg / 13.0 lb PWM Source: Voltage controlled Brake: 4.18 Nm / 37 lb-in, 24 VDC, 0.50 A Enclosure: Inverter duty AC servo, UL/cUL/CE/KC/EAC certified Country of Origin: Mexico Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 16.00
Depth: 8.00
Length: 8.00
Width: 16.00
SKU: 260989 4.S8.16.2
