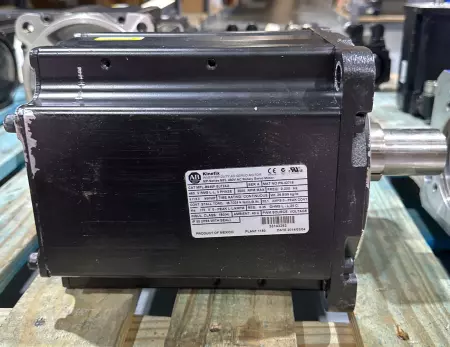

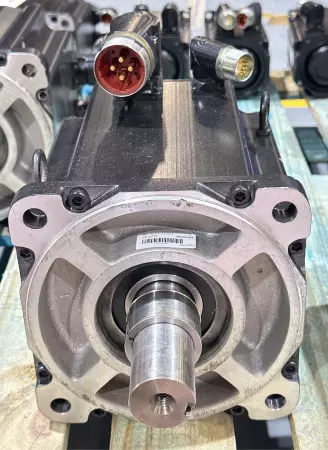

Allen-Bradley MPL-B640F-SJ72AA SER.A AC Servo Motor, 8.2HP

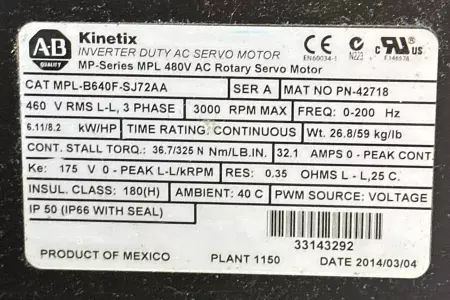

High-performance rotary servo motor engineered for high-torque, continuous-duty motion control applications. This model is part of the Kinetix MPL 480V AC servo motor series and supports reliable integration with Allen-Bradley Kinetix drives. Technical Specifications: Catalog Number: MPL-B640F-SJ72AA Voltage: 460 V RMS line-to-line, 3-phase Power Rating: 6.11 kW / 8.2 HP Max Speed: 3000 RPM Frequency Range: 0–200 Hz Continuous Stall Torque: 36.7 Nm / 325 lb-in Current (Continuous Peak): 32.1 A Torque Constant (Ke): 175 V L-L / KRPM (peak) Resistance (L-L @ 25 °C): 0.35 Ohms Insulation Class: 180 (Class H) Ambient Temp: 40 °C Time Rating: Continuous duty Protection Class: IP50 (IP66 with shaft seal) Weight: 26.8 kg / 59.0 lb PWM Source: Voltage controlled Enclosure: Inverter duty AC servo, UL/cUL/CE certified Country of Origin: Mexico Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   70.00

Depth:   12.00

Length:   14.00

Width:   20.00

SKU:   260990 4.R3.8.2
