In stock 1 available

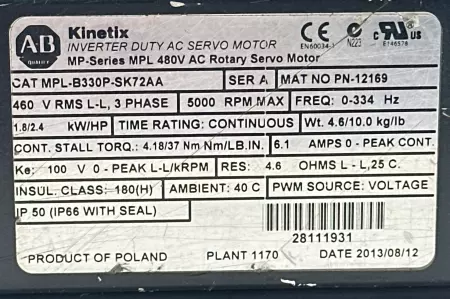

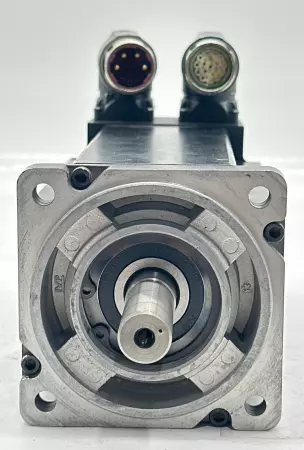

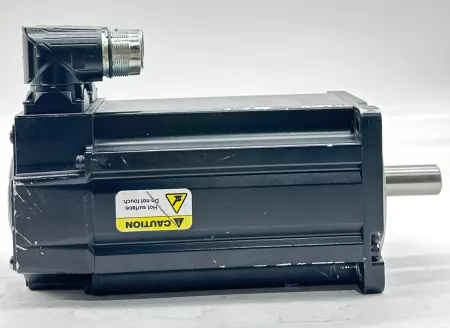

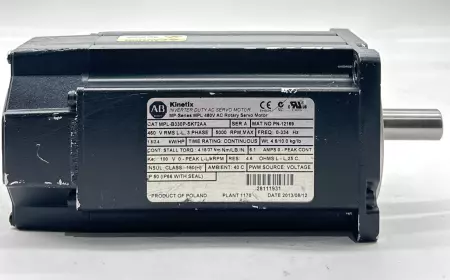

High-performance rotary servo motor designed for demanding motion control applications in industrial automation. This motor is part of the Kinetix MPL 480V series, offering smooth operation, high torque density, and compatibility with Allen-Bradley Kinetix servo drives. Technical Specifications: Catalog Number: MPL-B330P-SK72AA Voltage: 460 V RMS line-to-line, 3-phase Power Rating: 1.8 kW / 2.4 HP Max Speed: 5000 RPM Frequency Range: 0–334 Hz Continuous Stall Torque: 4.18 Nm / 37 lb-in Current (Continuous Peak): 6.1 A Torque Constant (Ke): 100 V L-L / KRPM (peak) Resistance (L-L @ 25 °C): 4.6 Ohms Insulation Class: 180 (Class H) Ambient Temp: 40 °C Time Rating: Continuous duty Protection Class: IP50 (IP66 with shaft seal) Weight: 4.6 kg / 10.0 lb PWM Source: Voltage controlled Enclosure: Inverter duty AC servo, UL/cUL/CE certified Country of Origin: Poland Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 25.00
Depth: 8.00
Length: 8.00
Width: 16.00
SKU: 260992 4.S8.16.2
