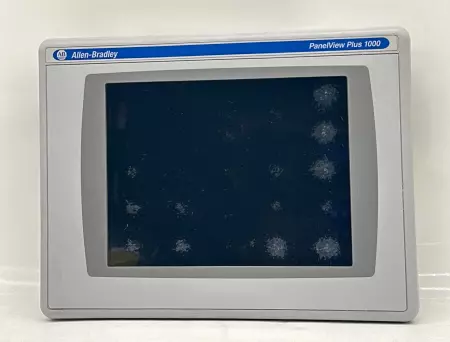

Allen-Bradley 2711P-RDT10C SER.B PanelView Plus 1000 Operator Touch Panel 10.4"

10.4-inch color touchscreen operator interface used in industrial automation for monitoring and controlling machines. Part of the PanelView Plus 1000 series, offering reliable HMI capabilities with flexible communication and high-performance graphics. Technical Specifications: Manufacturer Part Number: 2711P-RDT10C Display Size: 10.4 in. (264 mm) diagonal Display Type: TFT active matrix color LCD Resolution: 640 x 480 pixels (VGA) Touchscreen: Analog resistive, 8-wire Display Colors: 18-bit color (262,144 colors) Backlight: CCFL, field replaceable Backlight Life: Approx. 50,000 hours at 25 °C Input Voltage: 18–32 V DC (24 V DC nominal) Power Consumption: Approx. 50 W (max) Heat Dissipation: 56 W (190 BTU/hr) Operating Temperature: 0 to 55 °C Storage Temperature: –25 to 70 °C Relative Humidity: 5% to 95% non-condensing Shock Rating (Operating): 15 g peak, 11 ms duration Vibration Rating: 1 g from 10 to 500 Hz Mounting: Panel mount Enclosure Rating: NEMA Type 12, 13, 4X (indoor), IP65 (front) Certifications: UL, cUL, CE, C-Tick, RoHS Compatible with: PanelView Plus and PanelView Plus 6 logic modules Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   9.00

Depth:   8.00

Length:   16.00

Width:   16.00

SKU:   260993 4.S6.9.2
