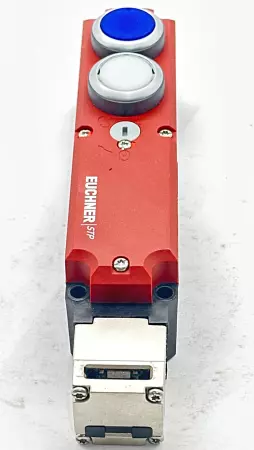

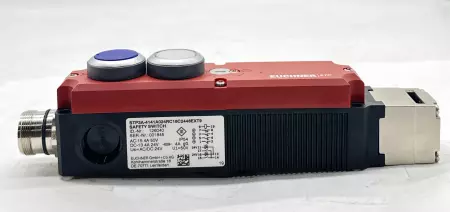

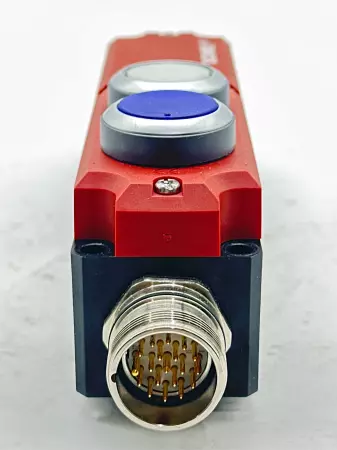

Euchner 126040 Safety Switch

Compact safety switch with separate actuator, designed for guard door monitoring in automation systems. Features a rugged plastic housing and is suitable for applications requiring precise position sensing and tamper resistance. Technical Specifications: Manufacturer Part Number: 126040 (CET3-AR-CRA-CH-50X-SH-106128) Switch Type: Safety switch with guard locking and separate actuator Locking Principle: Power to unlock (closed-circuit current principle) Housing Material: Plastic Guard Locking Force: 3,900 N Rated Operational Voltage: 24 V DC Rated Operating Current: 4 A Power Consumption: Approx. 8 W Connection Type: M12 plug connector, 8-pin Safety Outputs: 2 semiconductor outputs (FO1A/FO1B) Monitoring Outputs: 1 status output Actuating Direction: Longitudinal to the broad side Protection Class: IP54 Mounting Orientation: Any Ambient Temperature Range: –20 °C to +55 °C Certifications: TÜV, UL, CE

Condition: Used

Weight:   3.00

Depth:   6.00

Length:   6.00

Width:   10.00

SKU:   260994 4.S1.1.4
