In stock 1 available

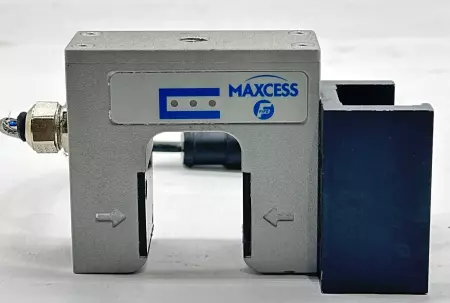

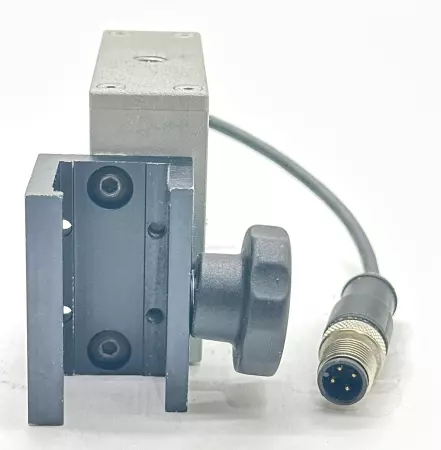

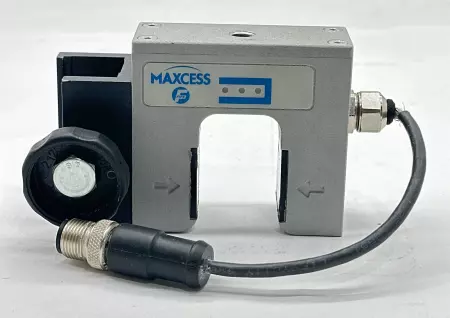

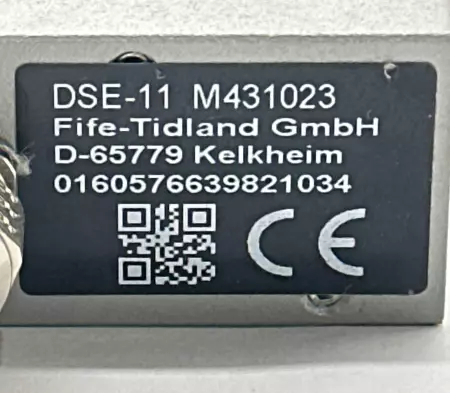

Model: DSE-11 Part Number: M431023 Manufacturer: Maxcess (Fife-Tidland) Sensor Type: Digital Infrared Edge Sensor Country of Manufacture: Germany Key Features: Compact Design: The DSE-11 is the smallest infrared sensor available from Fife, making it ideal for applications where space is limited. Ambient Light Insensitivity: Utilizes modulated infrared light at 875 nm, ensuring reliable operation even in environments with varying ambient light conditions. Dual Voltage Operation: Can operate with either 12 VDC or 24 VDC supply voltages, automatically adjusting the output signal accordingly. Output Signals: Provides a 0–10 mA output in 12 VDC mode and a 4–20 mA output in 24 VDC mode, facilitating compatibility with various controllers and PLCs. Integrated LED Display: Features a built-in LED display visible from both sides, indicating operating status, edge position, and error messages. Versatile Mounting: Designed for fast, easy, and robust mounting using multiple brackets and sensor positioners. Wide Compatibility: Can be connected to all available Fife web guide processors, including the D-MAXE controller. Technical Specifications: Power Supply: 12 VDC or 24 VDC Output Signal: 0–10 mA (12 VDC), 4–20 mA (24 VDC) Sensor Field of View: 10 mm Linearity Error: ≤5% (at 20% to 80% of gap width) Temperature Error: ≤2% (between 10°C and 50°C) Operating Temperature: 5°C to 60°C Protection Class: IP54 (IP64 optional) Dimensions: Approximately 67 mm (height) x 46.6 mm (width) x 24 mm (depth) Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 3.00
Depth: 6.00
Length: 6.00
Width: 6.00
SKU: 260995 4.S5.18.2
