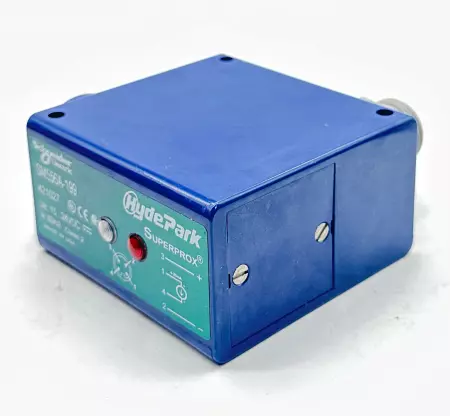

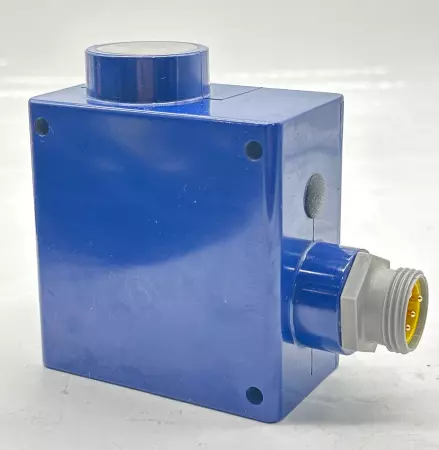

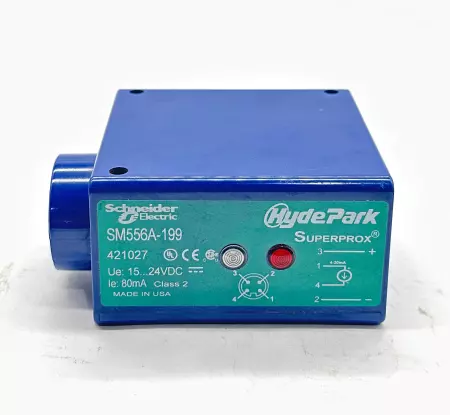

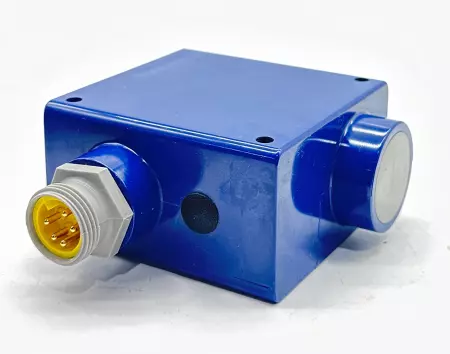

Hyde Park SM556A-199 Superprox® Ultrasonic Analog Sensor

The Hyde Park SM556A-199 Superprox® is an analog ultrasonic sensor designed for non-contact distance measurement and object detection. It delivers a continuous analog output proportional to target distance, making it suitable for material handling, level sensing, and positioning applications.

Sensor Type: Ultrasonic analog sensor
Model: SM556A-199
Sensing Range: 4 in to 40 in (approx. 102 mm to 1016 mm)
Output Type: Analog 80 mA
Response Time: ≤ 50 ms
Supply Voltage: 15-24 VDC
Repeatability: ±0.1% of full scale
Hysteresis: ≤ 0.1 in (2.5 mm) typical
Beam Angle: Narrow ultrasonic beam for tight target zones
Connection Type: 5-pin Micro DC (M12) connector
Housing Material: Stainless steel or rugged polymer (depending on model variant)
Environmental Protection: IP67
Operating Temperature: -20°C to +70°C
Application: Distance measurement, object detection, level control
Manufacturer: Hyde Park / Schneider Electric
Made in: USA Please review pictures carefully and let us know if you have any questions!
