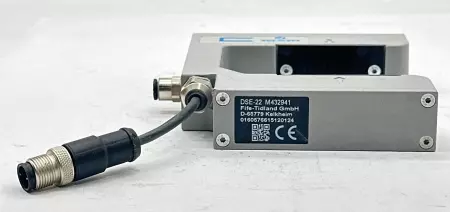

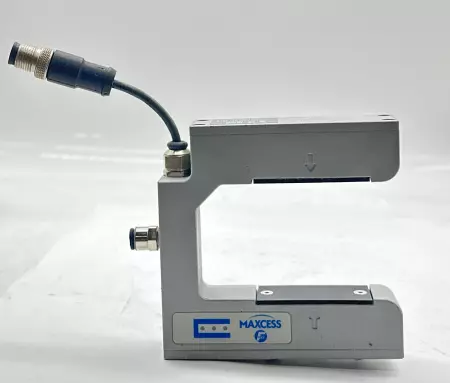

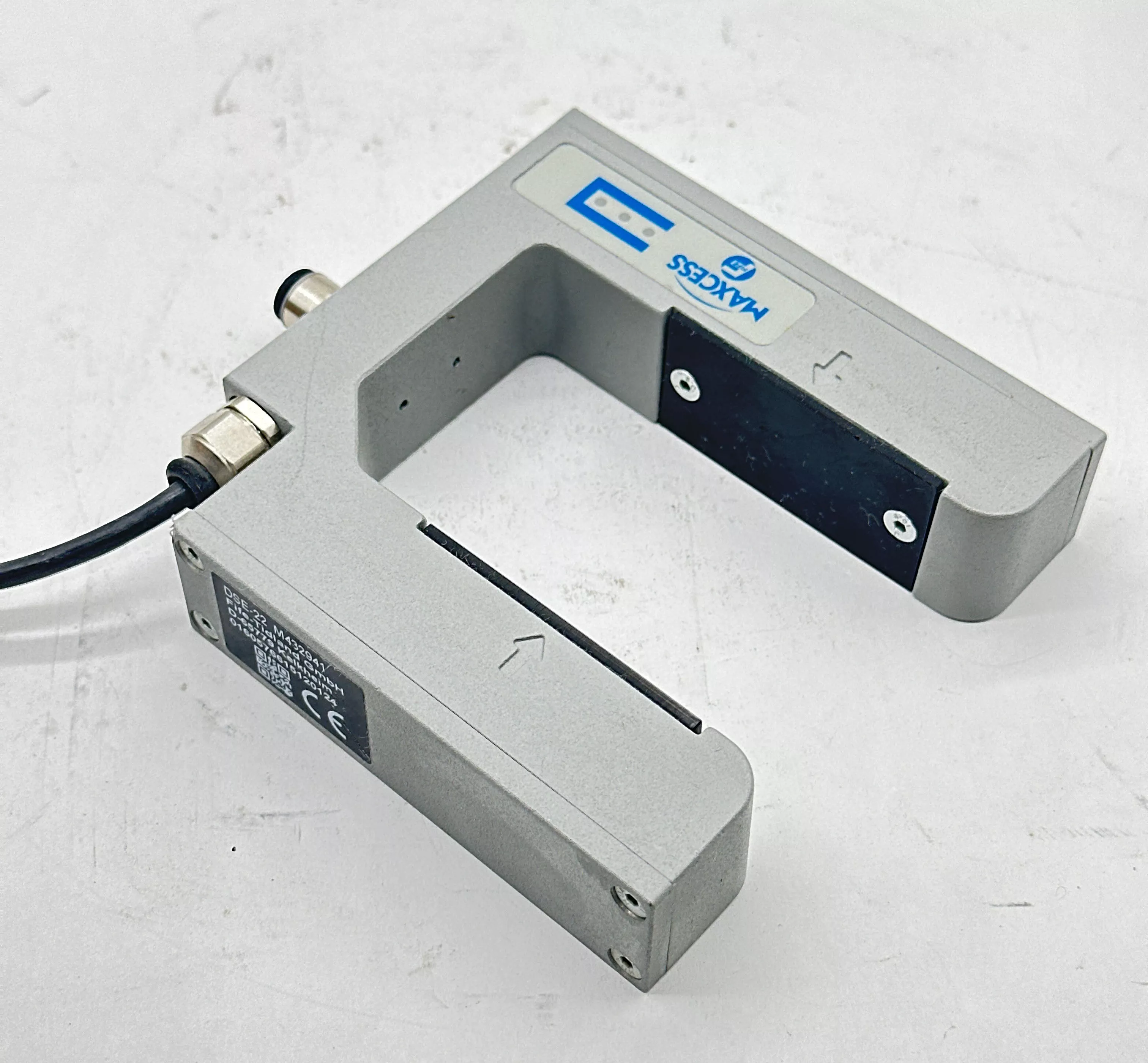

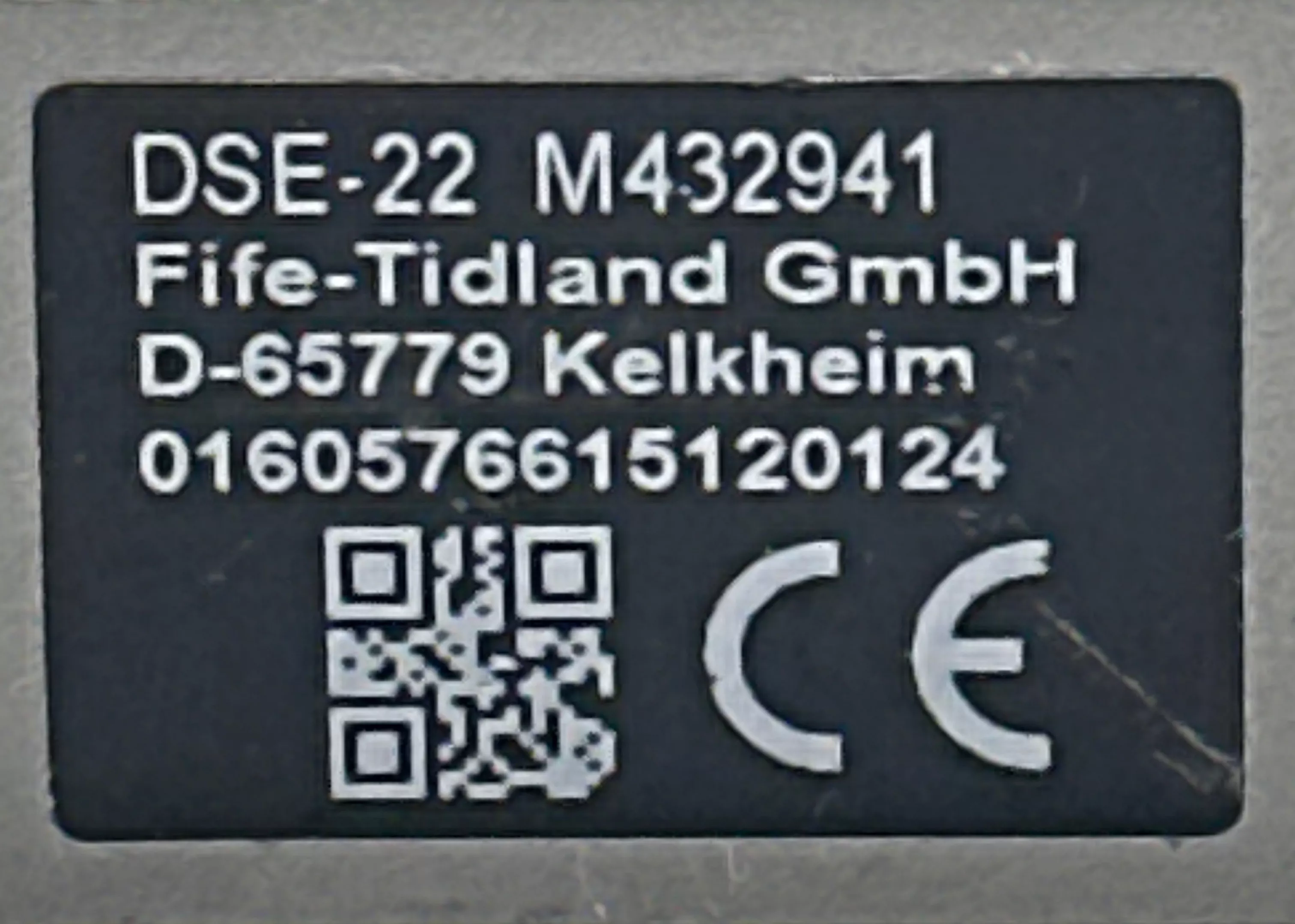

Fife-Tidland DSE-22 Maxcess Infrared Sensor

The Fife-Tidland DSE-22 is a compact digital infrared light sensor designed for precise edge detection in web guiding systems. It operates using a non-contact infrared beam and is suitable for various opaque or translucent materials in industrial processing environments. Sensor Type: Digital infrared edge sensor Model: DSE-22 Proportional Band: 20 mm Wavelength: 875 nm Supply Voltage: 10–28 VDC Output Signal: 0–10 mA Connector Type: 4-pin M12 Ingress Protection: IP20 Application: Web guiding, edge detection Manufacturer: Maxcess (Fife-Tidland)
