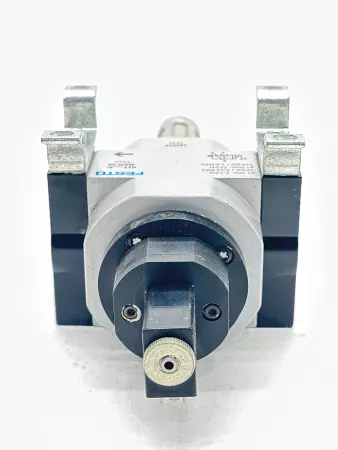

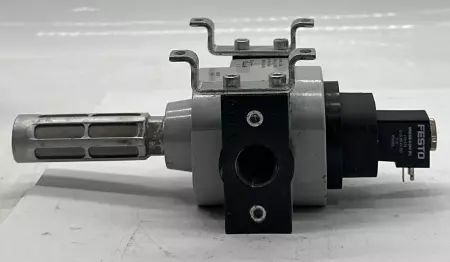

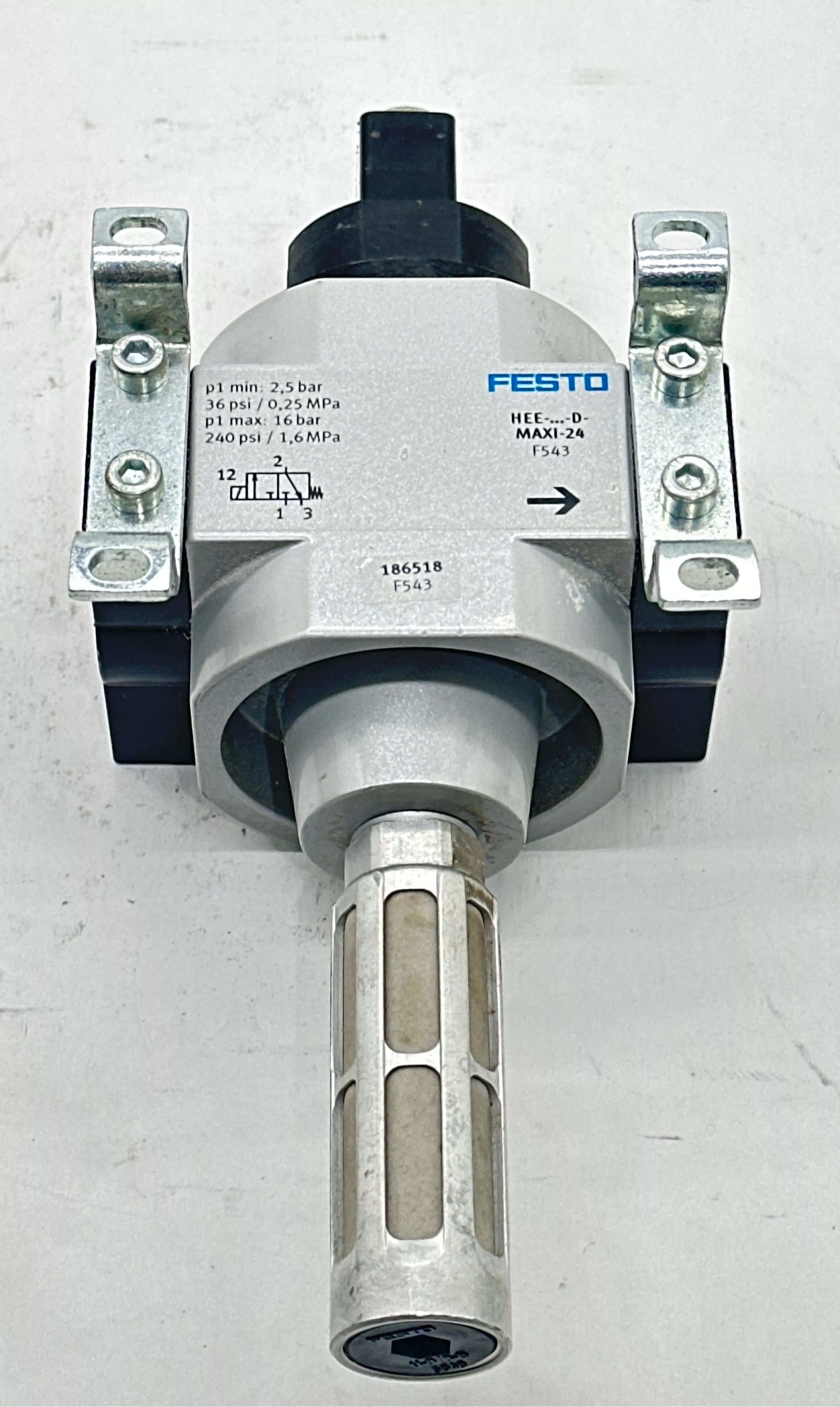

Festo HEE-…-D-MAXI-24 Air Source Safety Start Valve/Filter Assembly PN 186518

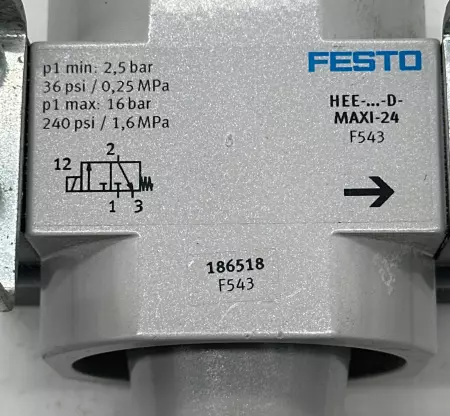

The Festo HEE-…-D-MAXI-24 (Part No. 186518) is a safety start valve and filter combination unit used to safely introduce compressed air into pneumatic systems. It ensures a controlled pressure build-up to avoid sudden system activation and includes an integrated filter for air preparation. Function: Soft-start valve with integrated filter Model: HEE-…-D-MAXI-24 Part Number: 186518 Min Inlet Pressure (p1 min): 2.5 bar (36 psi / 0.25 MPa) Max Inlet Pressure (p1 max): 16 bar (240 psi / 1.6 MPa) Port Size: G1 (threaded port) 3/2 Way Normally Closed 5600 L/M Standard Nominal Flow Rate Control Voltage: 24V DC Operation: Pneumatically actuated with electrical control Flow Direction: Left to right (as indicated by arrow) Symbol: 3/2-way valve with soft-start function Mounting: Inline with standard mounting brackets Application: Pneumatic system startup safety and filtration Manufacturer: Festo Made in: Germany Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   5.00

Depth:   5.00

Length:   9.00

Width:   12.00

SKU:   260999 4.S5.7.3
