Dwyer 2000-3 KPA Magnehelic® Pressure Gauge 0-3 kPa

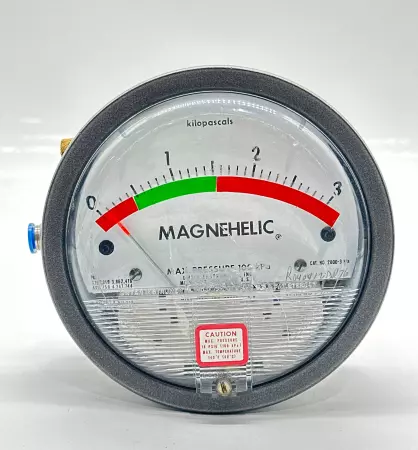

The Dwyer 2000-3KPA Magnehelic® differential pressure gauge provides reliable, easy-to-read measurement of low pressure air and non-corrosive gases. With a range of 0 to 3 kilopascals, it is ideal for monitoring filters, clean room conditions, and ventilation systems. Pressure Range: 0 to 3 kPa Max Pressure: 100 kPa (15 psi) Accuracy: ±2% of full scale Dial Size: 4 inch (101.6 mm) Process Connection: 1/8" NPT high and low pressure taps Mounting: Surface or flush mount Case Material: Die-cast aluminum with gray epoxy finish Window Material: Clear acrylic Temperature Range: 20 to 140°F (-6.7 to 60°C) Indicator Type: Mechanical analog pointer with colored zone markings Application: Low differential pressure monitoring Compliance: RoHS compliant Made in: USA

Condition: Used

Weight:   5.00

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   261001 4.S3.1.1
