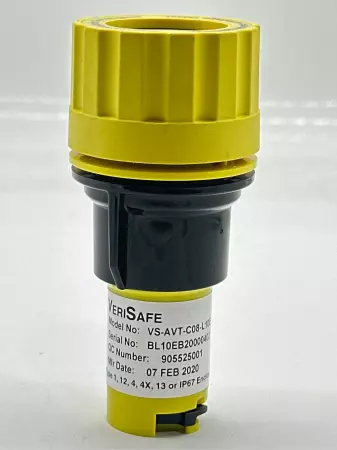

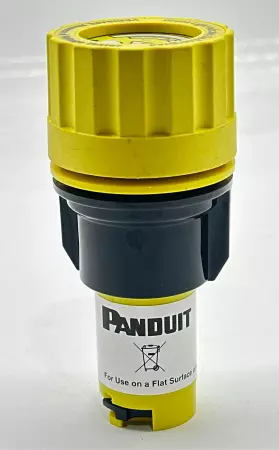

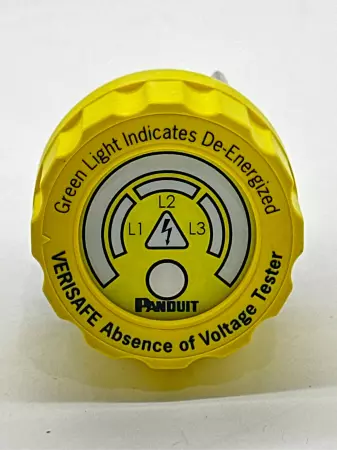

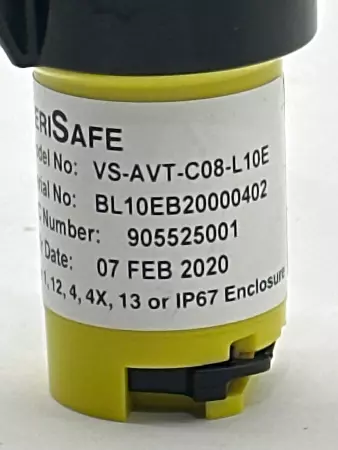

Panduit VS-AVT-C08-L10E Verisafe® Absence of Voltage Tester Head

The Panduit Verisafe® VS-AVT-C08-L10E is an absence of voltage tester head designed to work with the Verisafe system. It enables a safe, reliable, and automated process to verify the absence of voltage, helping meet the NFPA 70E requirements and enhancing electrical safety during lockout/tagout (LOTO) procedures. This model includes an 8 ft (2.4 m) lead length and is designed for 3-phase systems. Voltage Range: 0–600 VAC/VDC System Type: Three-phase Lead Length: 8 ft (2.4 m) Cable Type: 10 conductor Installation: Panel-mounted (requires hole cut-out for mounting) Indication Method: LED indicators on the test port Operating Temperature: -20°C to 55°C Ingress Protection: IP66 (when installed properly) Standards Compliance: Meets UL 61010-1, IEC 61010-1, NFPA 70E Application: Verifies absence of voltage before opening electrical enclosures Compatible with: Verisafe AVT base units Housing Material: Polycarbonate Mounting: Front panel with locking ring Test Function: Automated absence of voltage test with push-button activation Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   2.00

Depth:   6.00

Length:   6.00

Width:   6.00

SKU:   261003 4.S4.3.2A
