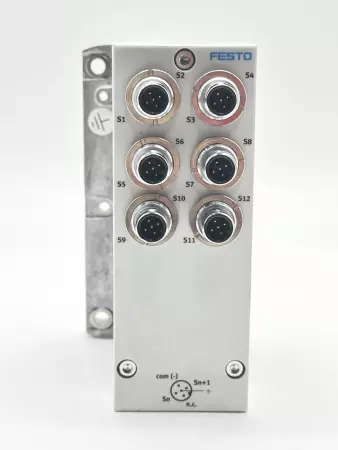

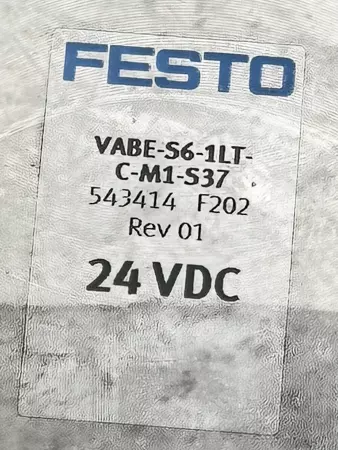

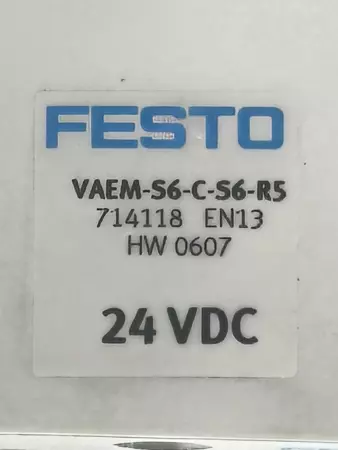

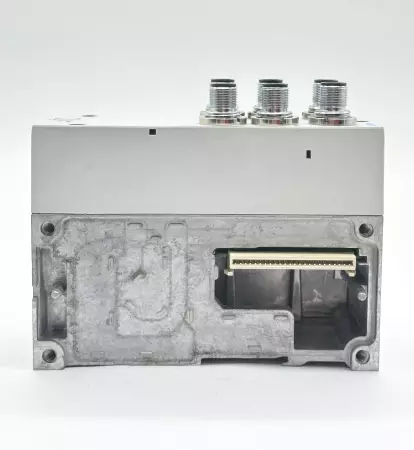

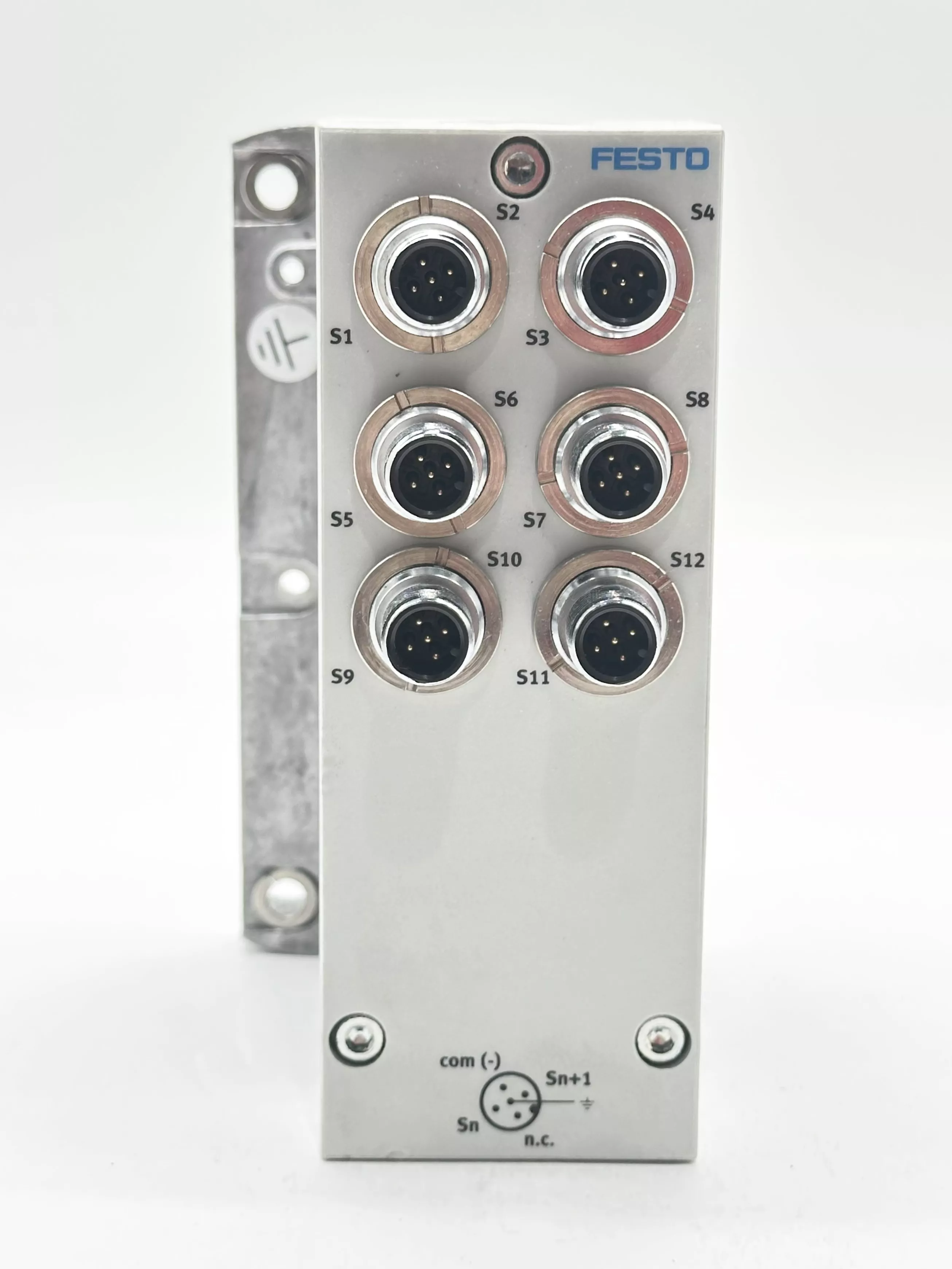

Festo 714118 Pneumatic Valve Control W/543414 Multi-Pin Node

Festo 714118 Pneumatic Valve Control with 543414 Multi-Pin Node is a modular pneumatic valve terminal designed for efficient control of multiple actuators in automated systems. It combines compact valve control with fieldbus or multipin connectivity for flexible installation and integration. Valve Terminal Model: Festo 714118 (Type: CPV10-VI) Valve Type: Solenoid-operated, pilot-actuated Valve Function: 5/2 or 5/3-way (depending on configuration) Port Size: 10 mm system, typically 4 mm or 6 mm push-in fittings Operating Pressure: 3 to 8 bar (43.5 to 116 psi) Max Flow Rate: Up to 400 l/min (depending on valve type) Valve Width: 10 mm Electrical Connection: Via 543414 multi-pin node (Sub-D, 25-pin) Control Voltage: 24 V DC Power Consumption: Typically 0.6 W per solenoid Protection Class: IP65 (when fully assembled with sealed connectors) Mounting: DIN rail or panel mount Temperature Range: -5 °C to +50 °C Manual Override: Detent and non-detent (tool operated) Materials: Housing – Aluminum, Seals – NBR (Buna-N) Application: Compact automation, handling, and assembly systems Please review pictures carefully and let us know if you have any questions!

Condition: New

Weight:   5.00

Depth:   6.00

Length:   6.00

Width:   10.00

SKU:   261004 4.S6.7.2
