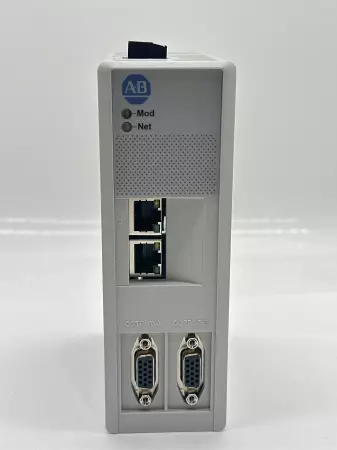

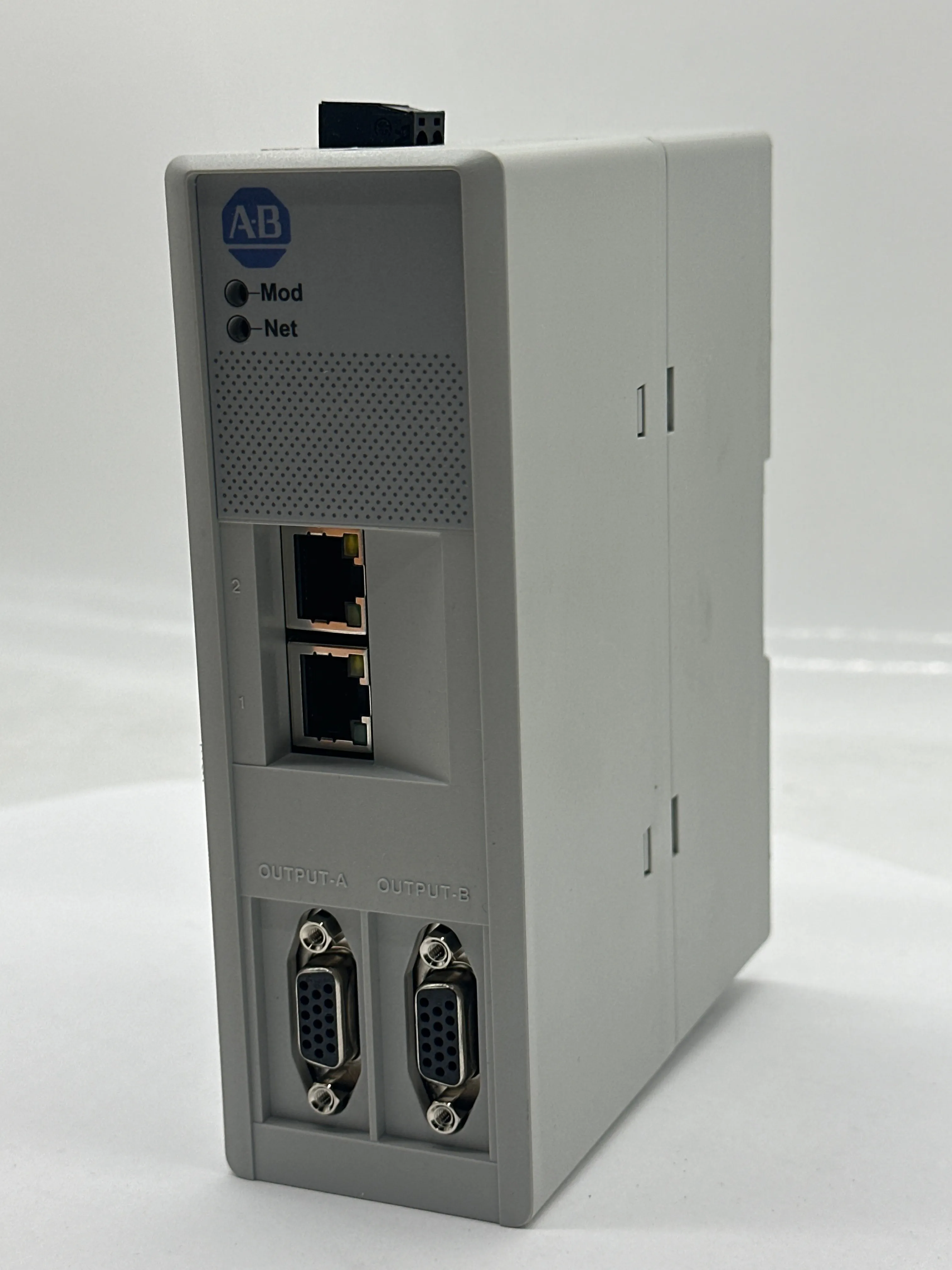

Allen-Bradley 2198-ABQE SER.A 2-Channel Encoder Output Emulator Module

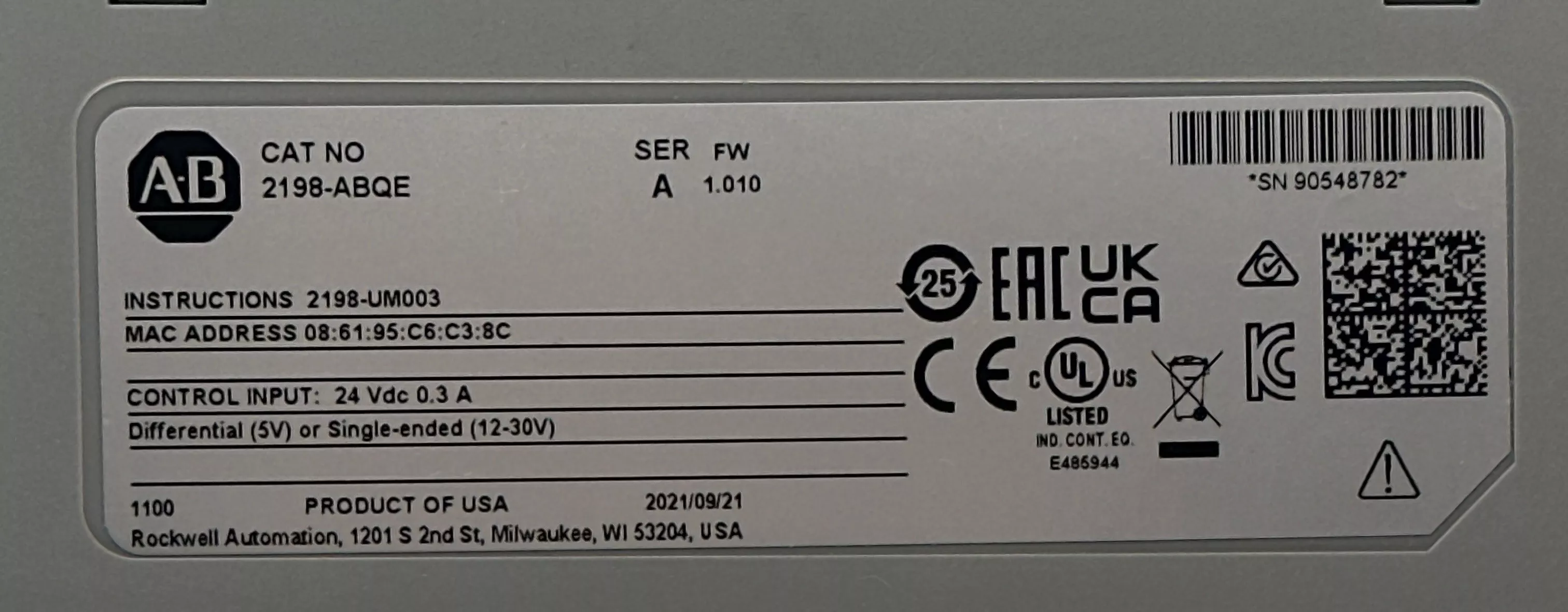

Allen-Bradley 2198-ABQE SER.A is a 2-channel encoder output emulator module designed for use with Kinetix 5700 servo drives. It replicates encoder signals to support feedback requirements of other control systems or devices such as motion controllers, drives, or PLCs. Product Type: Encoder Output Emulator Module Catalog Number: 2198-ABQE Series: A Channels: 2 (dual output) Compatible Drive Platform: Kinetix 5700 Emulated Output Types: Incremental (A, B, Z) quadrature signals Signal Level: Differential RS-422 (5V line driver output) Encoder Emulation Resolution: Configurable via drive firmware Mounting Type: Panel mount Connector Type: 15-pin D-sub (female) Operating Voltage: Supplied by connected drive (24V DC typical), 0.3 amps Operating Temperature: 0 to 50 °C (32 to 122 °F) Certifications: CE, cULus, KC, TUV, and EtherNet/IP compliant Firmware Requirement: Requires compatible Kinetix 5700 drive firmware Typical Use Case: Interface to external control systems needing encoder feedback Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   5.00

Depth:   5.00

Length:   9.00

Width:   12.00

SKU:   261014 4.S6.13.3
