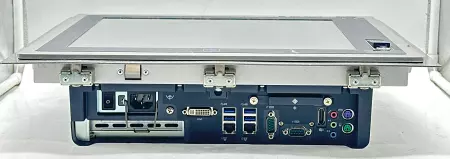

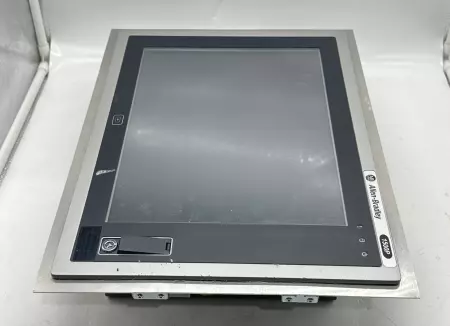

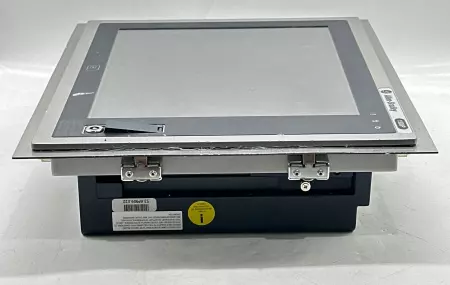

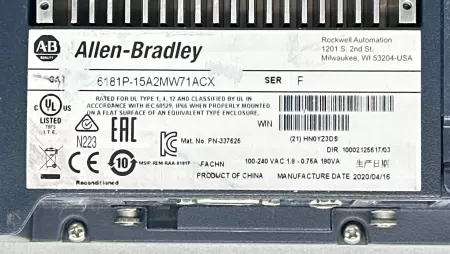

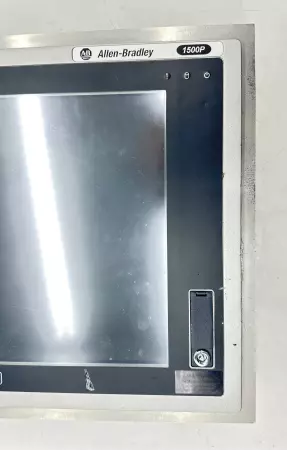

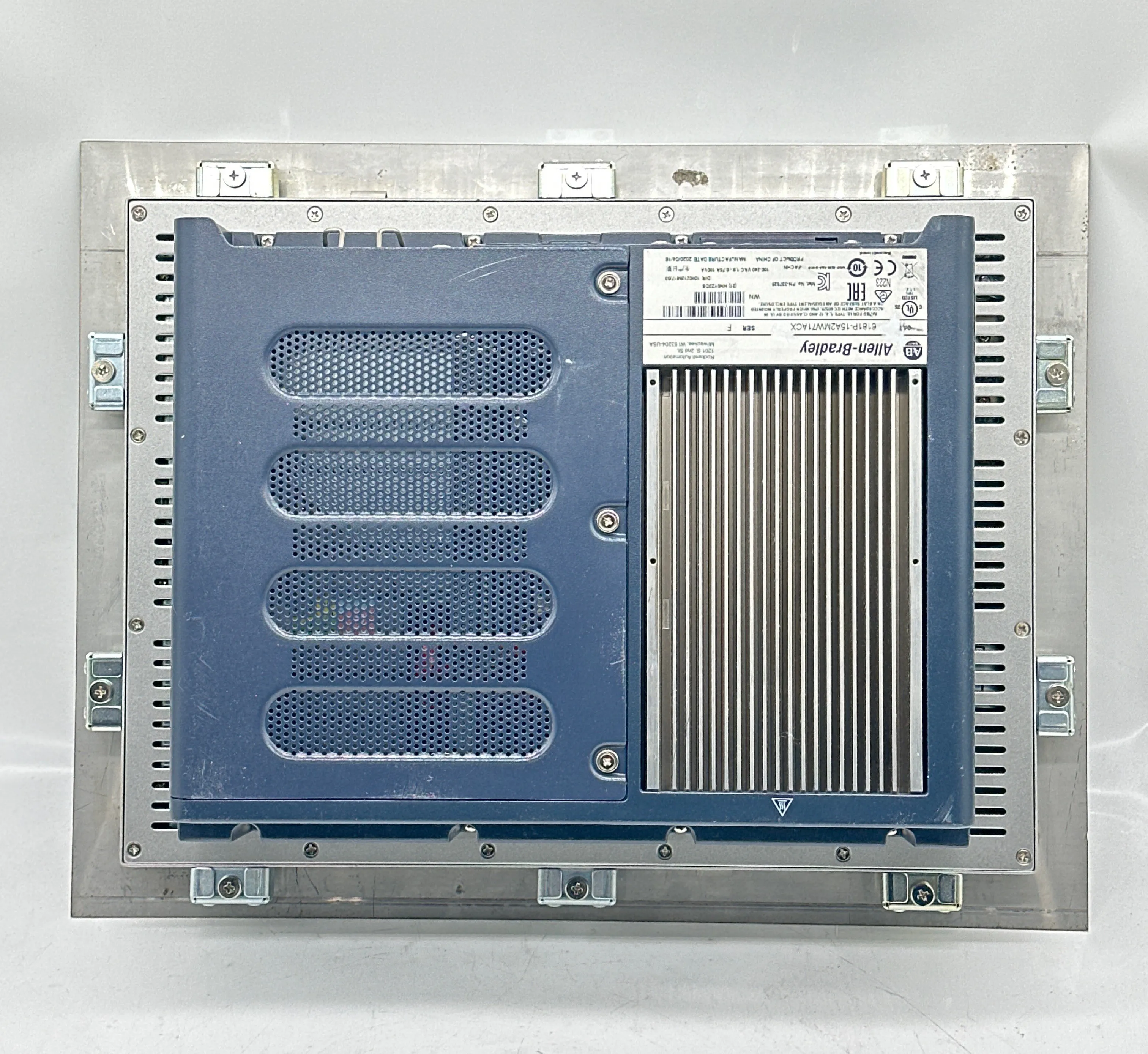

Allen-Bradley 6181P-15A2MW71ACX SER.F 1500P Operator Touchscreen Computer Panel

The Allen-Bradley 6181P-15A2MW71ACX Series F is a ruggedized industrial Panel PC designed for use as an operator interface in harsh environments. Part of the 6181P Performance Series, this model combines a high-resolution touchscreen display with embedded computing capabilities, ideal for SCADA, HMI, and machine-level control applications. Product Overview Model: 6181P-15A2MW71ACX Series: F Display Size: 15.0 inches Display Type: TFT Color LCD Resolution: 1024 × 768 (XGA) Touchscreen Type: Analog resistive touchscreen Brightness: ~300 nits (model dependent) Enclosure Type: Panel-mounted, NEMA 4/4X, IP65-rated front bezel Computer Specifications Processor: Intel Core 2 Duo RAM: Typically 2 GB or 4 GB DDR2 (expandable depending on model variant) Storage: 80 GB SATA HDD or optional solid-state drive (SSD upgradeable) Operating System (pre-installed): Windows XP Embedded or Windows 7 (based on version ordered) Graphics: Integrated Intel graphics I/O Ports: 2 × USB 2.0 1 × Ethernet (10/100/1000 Mbps) 1 × RS232/422/485 serial port VGA output Audio in/out (line level) Power & Environmental Input Voltage: 85–264 VAC, 47–63 Hz Power Consumption: ~80–100 W (typical) Operating Temperature: 0°C to 50°C Storage Temperature: -25°C to 70°C Humidity: 5–95% non-condensing Vibration & Shock: IEC 60068-2 compliant for industrial use Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   30.00

Depth:   12.00

Length:   14.00

Width:   20.00

SKU:   261016 4.S6.13.3
