Olsun GT15LE-0 Dry Type Transformer, 15kVA

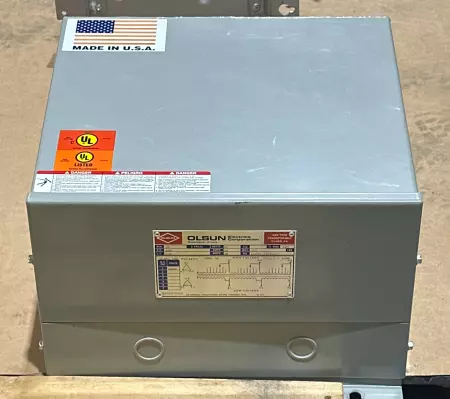

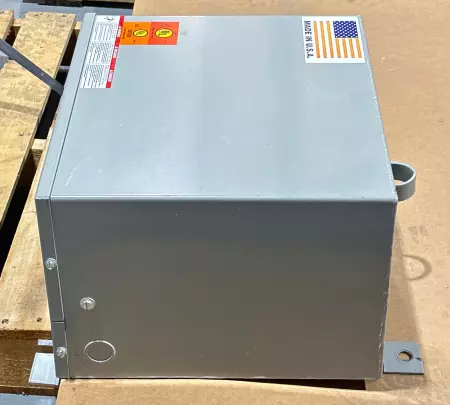

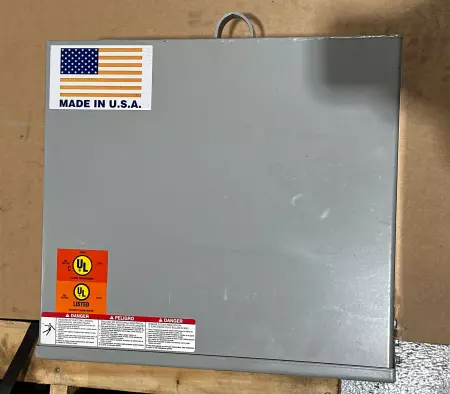

The Olsun GT15LE-0 is a 15 kVA three-phase dry-type transformer designed for indoor or outdoor use in industrial and commercial applications. It features a ventilated NEMA Type 3R enclosure, Class AA insulation, and delta-delta winding configuration for robust and safe voltage step-down. Technical Specifications Model Number: GT15LE-0 Power Rating: 15 kVA Phase: 3 Phase Frequency: 60 Hz High Voltage (Primary): 460 V Low Voltage (Secondary): 230 V Primary Current: 19 A Secondary Current: 38 A Insulation Class: 180 (Class H) Temperature Rise: 115 °C Impedance (%IZ): Not specified Enclosure Type: NEMA Type 3R Cooling Type: Dry Type, Ventilated Winding Configuration: Delta (Δ) Primary / Delta (Δ) Secondary Polarity: H1-H2-H3 and X1-X2-X3 (Delta connections shown) Weight: 260 lbs Note: De-energize transformer before changing taps Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   300.00

Depth:   24.00

Length:   40.00

Width:   48.00

SKU:   261179 4.R3.6.3
