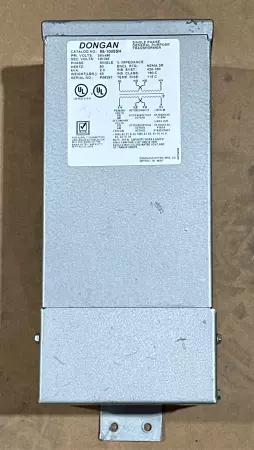

Dongan 85-1045SH Single-phase General Purpose Transformer, 2.0kVA

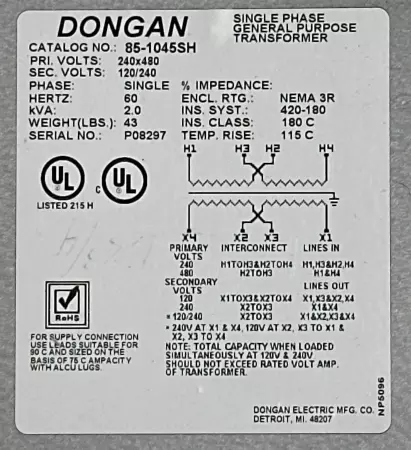

The Dongan 85-1045SH is a dry-type, single-phase general purpose transformer designed for light industrial and commercial applications. It provides reliable voltage conversion between 240/480 V primary and 120/240 V secondary outputs. Transformer Specifications Catalog Number: 85-1045SH Manufacturer: Dongan Electric Mfg. Co. Primary Voltage: 240/480 V Secondary Voltage: 120/240 V Frequency: 60 Hz Phase: Single Power Rating: 2.0 kVA Weight: 43 lbs Enclosure Rating: NEMA 3R (outdoor rated) Insulation System: 420-180 Insulation Class: 180°C Temperature Rise: 115°C UL Listed: Yes (Listed 215 H) RoHS Compliant: Yes Wiring: Dual primary and secondary windings; configurable for series or parallel Use Notes: Allows for simultaneous 120 V & 240 V output Max total load must not exceed 2.0 kVA Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   50.00

Depth:   12.00

Length:   14.00

Width:   20.00

SKU:   261180 4.R3.6.3
