Siemens 1LE10030DB334AA4-Z|UD AC Motor, 0.75kW

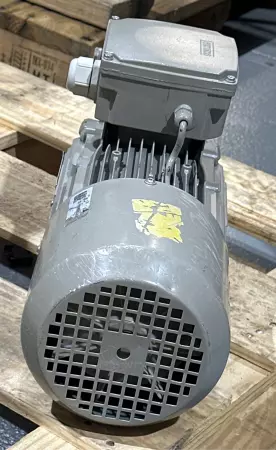

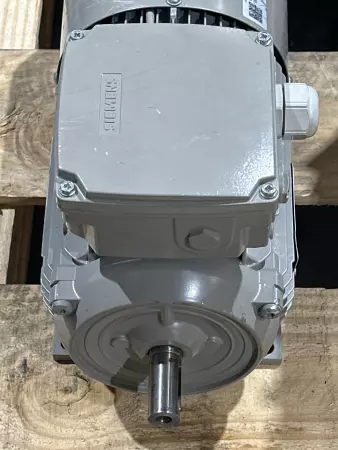

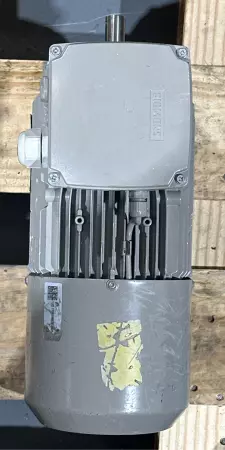

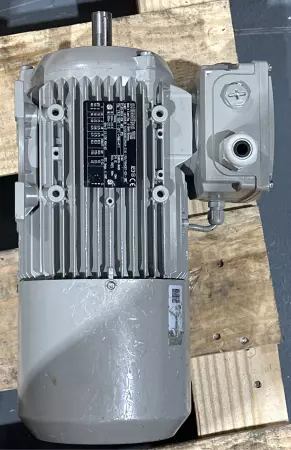

This Siemens IE3 premium efficiency motor is part of the 1LE1 series and is designed for industrial applications requiring reliable performance, integrated braking, and high energy efficiency. Motor Specifications Manufacturer: Siemens AG Model: 1LE10030DB334AA4-Z|UD Frame Size: 80M Mounting: IMB3 (foot mount) Enclosure: TEFC (Totally Enclosed Fan Cooled) Protection Class: IP55 Weight: 17 kg Thermal Class: 155(F) Ambient Temp Range: –20°C to +40°C Bearings: Drive End (DE): 6004–2ZC3 Non-Drive End (NDE): 6004–2ZC3 Electrical Ratings Power: 0.75 kW (1.0 HP) Voltage / Frequency / Speed: 400 V Δ, 50 Hz, 1.75 A, 1450 RPM, 82.5% Efficiency 460 V Δ, 60 Hz, 1.72 A, 1750 RPM, 83.5% Efficiency 460 V Δ, 60 Hz, 1.59 A, 1760 RPM, 83.5% Efficiency Power Factor: ~0.71–0.75 Service Factor: 1.15 Insulation Class: F Efficiency Class: IE3 (Premium Efficiency) Brake Module Brake Model: 2LM8010-3NA80 Brake Voltage: 24 VDC Current: 1.04 A Torque: 10 Nm Insulation Class (Brake): 155(F) Certifications & Compliance Standards: IEC/EN 60034 CE marked UL, cURus certified Efficiency Class: IE3 (High efficiency) Made in: Czech Republic Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   50.00

Depth:   10.00

Length:   12.00

Width:   16.00

SKU:   261182 4.R3.8.4
