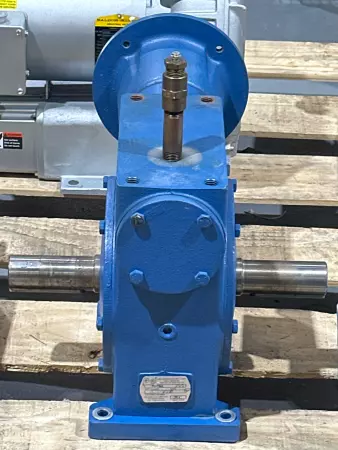

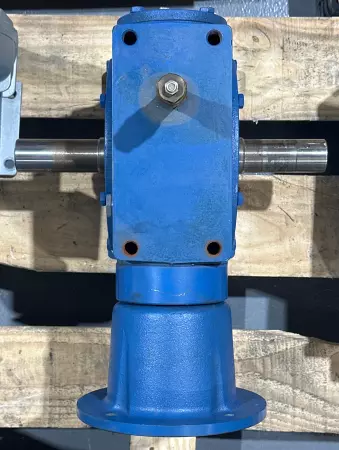

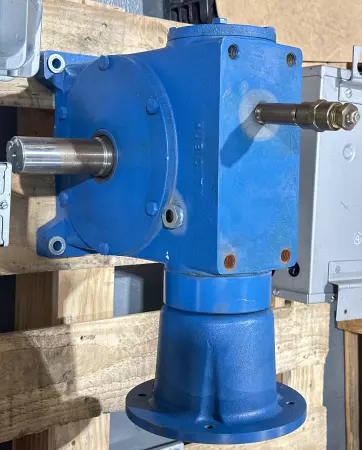

Paper Converting Machine 848661 Right Angle Gearbox, Ratio 15:1

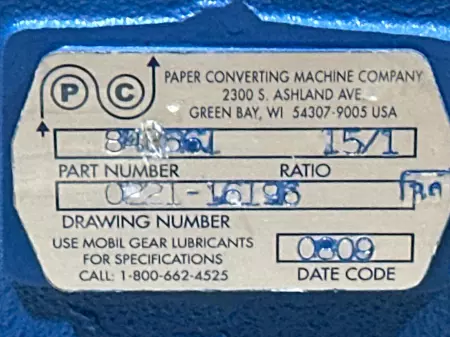

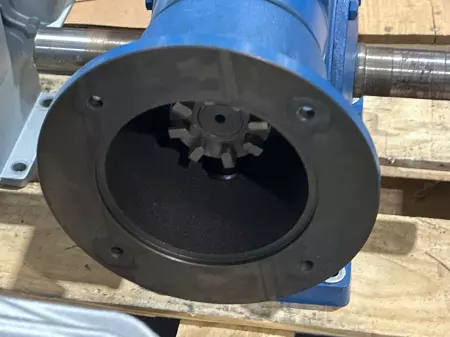

This right-angle gearbox, part number 848661, is designed by PCMC for use in paper converting and packaging machinery. It features a rugged housing and a 15:1 reduction ratio, suitable for high-torque, low-speed applications common in unwind, rewind, and indexing functions. Gearbox Specifications Manufacturer: Paper Converting Machine Company (PCMC) Part Number: 848661 Type: Right Angle Gear Reducer Gear Ratio: 15:1 Orientation: Right-angle (worm or bevel gear configuration) Input Speed: Typically up to 1750 RPM (confirm based on application) Output Speed: ~117 RPM at 1750 RPM input Torque Output: Application-specific (typically 300–1000+ Nm depending on frame size) Mounting: Flange or foot mount (application-specific) Lubrication: Oil-filled, splash lubricated (sealed unit) Construction: Cast iron or aluminum alloy housing (depending on size and weight constraints) Input/Output Shaft: Solid keyed and hollow motor entry Applications: Web handling, tension control, roll unwind/rewind, rotary knife drives, and other mechanical motion systems in converting lines Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   151.00

Depth:   24.00

Length:   40.00

Width:   48.00

SKU:   261184 4.R3.6.3
